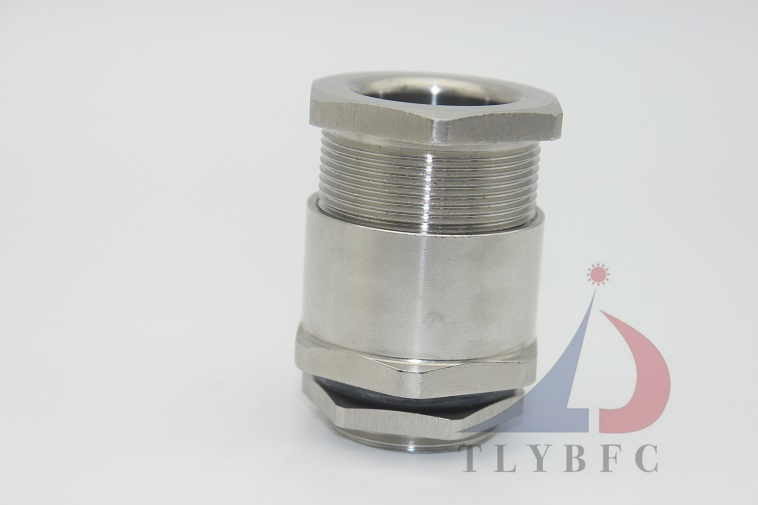

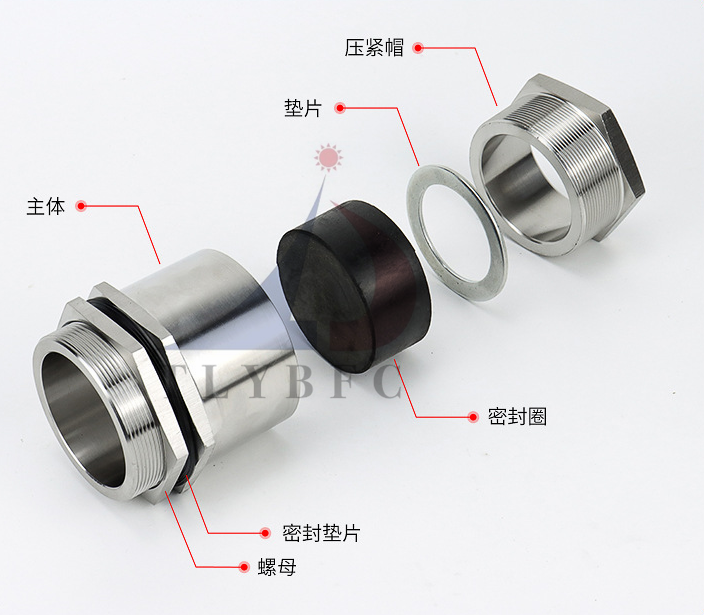

材料: 外部金属为SUS 304；内部芯体和密封件材料为硅橡胶
|
产品型号
|
螺纹规格
|
出线电缆外径
|
进线电缆外径
|
螺纹外径
|
螺纹长度
|
扳手尺寸
|
包装数量
|
TLYBFC-DYS-EX-SS-M20
|
M20X1.5
|
5-10
|
9-15
|
20
|
15
|
27/30
|
50
|
TLYBFC-DYS-EX-SS-M25
|
M25X1.5
|
9-15
|
14-20
|
25
|
15
|
33/37
|
25
|
TLYBFC-DYS-EX-SS-M32
|
M32X1.5
|
14-20
|
19-25
|
32
|
17
|
38/42
|
20
|
TLYBFC-DYS-EX-SS-M40
|
M40X1.5
|
19-25
|
25-32
|
40
|
17
|
45/49
|
15
|
TLYBFC-DYS-EX-SS-M50-H
|
M50X1.5
|
25-32
|
31-36
|
50
|
17
|
54/59
|
10
|
TLYBFC-DYS-EX-SS-M50
|
M50X1.5
|
31-36
|
35-40
|
50
|
17
|
54/59
|
10
|
TLYBFC-DYS-EX-SS-M63-H
|
M63X1.5
|
35-40
|
39-45
|
63
|
17
|
64/69
|
5
|
TLYBFC-DYS-EX-SS-M63
|
M63X1.5
|
39-45
|
45-50
|
63
|
17
|
64/69
|
5
|
TLYBFC-DYS-EX-SS-M75-H
|
M75X1.5
|
45-50
|
48-56
|
75
|
17
|
82/87
|
2
|
TLYBFC-DYS-EX-SS-M75
|
M75X1.5
|
48-56
|
56-65
|
75
|
17
|
82/87
|
2
|
TLYBFC-DYS-EX-SS-M90
|
M90X2.0
|
56-65
|
74-75
|
90
|
17
|
100/105
|
1
|
TLYBFC-DYS-EX-SS-M115
|
M115X2.0
|
74-84
|
87-98
|
115
|
17
|
100/105
|
1
|
|
产品型号
|
螺纹规格
|
出线电缆外径
|
进线电缆外径
|
螺纹外径
|
螺纹长度
|
扳手尺寸
|
包装数量
|
TLYBFC-DYS-EX-SS-G1/2
|
G1/2
|
5-10
|
9-15
|
20.99
|
15
|
27/30
|
50
|
TLYBFC-DYS-EX-SS-G3/4
|
G3/4
|
9-15
|
14-20
|
26.44
|
15
|
33/37
|
25
|
TLYBFC-DYS-EX-SS-G1
|
G1
|
14-20
|
19-25
|
33.24
|
17
|
38/42
|
20
|
TLYBFC-DYS-EX-SS-G1 1/4
|
G1 1/4
|
19-25
|
25-32
|
41.91
|
17
|
45/49
|
15
|
TLYBFC-DYS-EX-SS-G1 1/2-H
|
G1 1/2
|
25-32
|
31-36
|
47.80
|
17
|
54/59
|
10
|
TLYBFC-DYS-EX-SS-G1 1/2
|
G1 1/2
|
31-36
|
35-40
|
47.80
|
17
|
54/59
|
10
|
TLYBFC-DYS-EX-SS-G2-H
|
G2
|
35-40
|
39-45
|
59.61
|
17
|
64/69
|
5
|
TLYBFC-DYS-EX-SS-G2
|
G2
|
39-45
|
45-50
|
59.61
|
17
|
64/69
|
5
|
TLYBFC-DYS-EX-SS-G2 1/2
|
G2 1/2
|
45-50
|
48-56
|
75.18
|
17
|
82/87
|
2
|
TLYBFC-DYS-EX-SS-2 1/2
|
G2 1/2
|
48-56
|
56-65
|
75.18
|
17
|
82/87
|
2
|
TLYBFC-DYS-EX-SS-G3
|
G3
|
56-65
|
74-75
|
87.88
|
17
|
100/105
|
1
|
TLYBFC-DYS-EX-SS-G4
|
G4
|
74-84
|
87-98
|
113.03
|
17
|
100/105
|
1
|
|
产品型号
|
螺纹规格
|
出线电缆外径
|
进线电缆外径
|
螺纹外径
|
螺纹长度
|
扳手尺寸
|
包装数量
|
TLYBFC-DYS-EX-SS-NPT1/2
|
NPT1/2
|
5-10
|
9-15
|
20.85
|
15
|
27/30
|
50
|
TLYBFC-DYS-EX-SS-NPT3/4
|
NPT3/4
|
9-15
|
14-20
|
26.3
|
15
|
33/37
|
25
|
TLYBFC-DYS-EX-SS-NPT1
|
NPT1
|
14-20
|
19-25
|
33.15
|
17
|
38/42
|
20
|
TLYBFC-DYS-EX-SS-NPT1 1/4
|
NPT1 1/4
|
19-25
|
25-32
|
41.85
|
17
|
45/49
|
15
|
TLYBFC-DYS-EX-SS-NPT1 1/2
|
NPT1 1/2
|
25-32
|
31-36
|
47.75
|
17
|
54/59
|
10
|
TLYBFC-DYS-EX-SS-NPT1 1/2
|
NPT1 1/2
|
31-36
|
35-40
|
47.75
|
17
|
54/59
|
10
|
TLYBFC-DYS-EX-SS-NPT2
|
NPT2
|
35-40
|
39-45
|
59.55
|
17
|
64/69
|
5
|
TLYBFC-DYS-EX-SS-NPT-2
|
NPT2
|
39-45
|
45-50
|
59.55
|
17
|
64/69
|
5
|
TLYBFC-DYS-EX-SS-NPT2 1/2
|
NPT2 1/2
|
45-50
|
48-56
|
|
17
|
82/87
|
2
|
TLYBFC-DYS-EX-SS-NPT2 1/2
|
NPT2 1/2
|
48-56
|
56-65
|
|
17
|
82/87
|
2
|
TLYBFC-DYS-EX-SS-NPT3
|
NPT3
|
56-65
|
74-75
|
88.60
|
17
|
100/105
|
1
|
TLYBFC-DYS-EX-SS-NPT4
|
NPT4
|
74-84
|
87-98
|
|
17
|
100/105
|
1
|
