螺牙规格：公制牙MG螺牙，德制PG牙，英制G(PF)管制螺牙，美制NPT锥形螺牙。

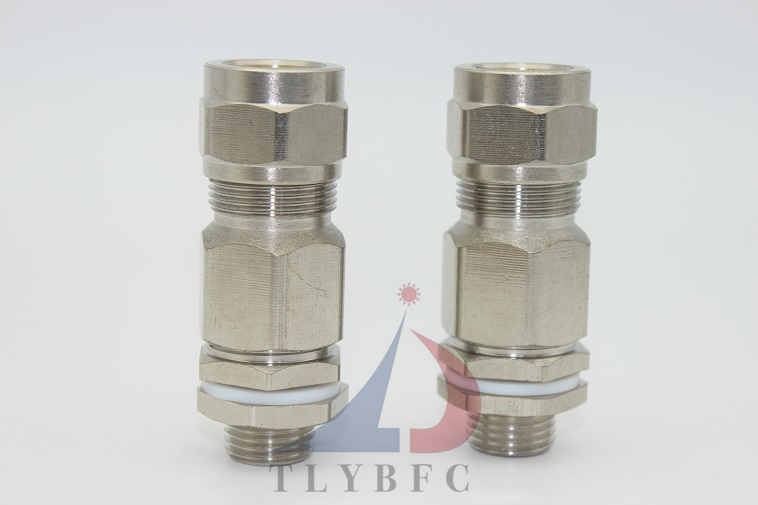

产品说明：采用黄铜（铜镀镍，不锈钢）原材料配合数控机床精加工制成，内置隔爆衬套和铠装电缆卡环，防爆功能特强，适合各类钢带，钢丝铠装电缆。电缆锁紧采用填料密封，防护性能好.具有快捷安装，安全可靠，防护性能好，防爆性能优越等特点，另抗拉力特强，可防水、防尘、抗盐、耐弱酸、油、油脂及一般溶剂。
防护等级 ：在规定的卡口范围内，并使用密封圈旋紧迫紧头，达到IP66-10Bar, 根据要求可达到IP67/IP68.
工作温度 ：-40℃~＋120℃短时可达＋150℃
产品材質 ：黄铜搭配硅胶制成。
适用电缆类型：编织铠装、钢带铠装（STA）
可选附件：接地片、密封圈、螺母、菊花垫片、护套
用方法：先将铠装电缆外层剪开，然后固定在铠装电缆卡环上，旋紧迫紧螺帽即可。
适用场所 ：1区.2区危险场所及IIA.IIB.IIC类爆炸性气体环境。
|
双密封铠装防爆填料函-II型隔爆(公制牙)
|
|
螺牙规格
|
订货型号
|
电缆外径密封范围
|
螺纹长度
|
钢带厚度
|
网带厚度
|
大直径B
|
|
公制
|
A(mm)
|
B(mm)
|
L(mm)
|
min
|
max
|
(mm)Max
|
（mm）
|
|
M20
|
TLYBFC-EXd-M20-14h
|
3.1～8.6
|
6.1～14.0
|
12
|
0.1
|
0.4
|
0.85
|
24
|
|
TLYBFC-EXd-M20-16h
|
6～12
|
9.5～16
|
12
|
0.1
|
0.4
|
0.9
|
30
|
|
M25
|
TLYBFC-EXd-M25-16h
|
6.1～11.6
|
9.5～15.9
|
12
|
0.1
|
0.4
|
0.9
|
30
|
|
TLYBFC-EXd-M25-29h
|
11.1～14
|
18.7～29
|
16
|
0.1
|
0.7
|
1.4
|
43
|
|
M32
|
TLYBFC-EXd-M32-25h
|
11.1～19.9
|
18.7～25
|
16
|
0.1
|
0.7
|
1.4
|
43
|
|
TLYBFC-EXd-M32-35h
|
17～21
|
22.9～35
|
16
|
0.1
|
0.7
|
1.4
|
50
|
|
M40
|
TLYBFC-EXd-M40-30h
|
17～26.2
|
22.9～30
|
16
|
0.1
|
0.7
|
1.6/2.0
|
50
|
|
TLYBFC-EXd-M40-42h
|
22～28
|
26～42
|
16
|
0.1
|
0.8
|
1.4
|
60
|
|
M50
|
TLYBFC-EXd-M50-35h
|
22～32.1
|
26～35
|
17
|
0.2
|
0.8
|
2.5
|
60
|
|
TLYBFC-EXd-M50-48h
|
29.5～39
|
35.5～48
|
17
|
0.2
|
0.63
|
1.4
|
65
|
|
M63
|
TLYBFC-EXd-M63-45h
|
29.5～38.1
|
35.5～45
|
17
|
0.2
|
0.63
|
2.0/2.5
|
65
|
|
TLYBFC-EXd-M63-45h
|
40.1～51
|
45.6～62
|
17
|
0.2
|
0.63
|
1.5
|
80
|
|
M75
|
TLYBFC-EXd-M75-55h
|
47.2～50
|
45.6～55
|
19
|
0.3
|
0.63
|
2.5
|
80
|
|
TLYBFC-EXd-M75-74h
|
52.8～63
|
57～74
|
19
|
0.3
|
0.81
|
1.5
|
92
|
|
M100
|
TLYBFC-EXd-M100-72h
|
52.8～61.9
|
57～72.1
|
19
|
0.3
|
0.81
|
2.5
|
92
|
|
TLYBFC-EXd-M100-79h
|
59.1～67.9
|
60.4～79
|
19
|
0.3
|
0.81
|
2.5/3.15
|
92
|
|
TLYBFC-EXd-M100-93h
|
70～86
|
76～93
|
19
|
0.3
|
0.94
|
1.6
|
117
|
|
M125
|
TLYBFC-EXd-M125-93h
|
70～86
|
76～93
|
19
|
0.3
|
0.936
|
1.6
|
117
|
|
双密封铠装防爆填料函-II型隔爆(英制牙)
|
|
螺牙规格
|
订货号
|
电缆外径密封范围
|
螺纹长度
|
钢带大厚度
|
网带大厚度
|
大直径B（mm）Max
|
|
英制
|
A(mm)
|
B(mm)
|
L(mm)
|
min
|
max
|
02(mm)Max
|
|
G1/2
|
TLYBFC-EXd-G1/2-13h
|
3.1～8.6
|
6.1～13.4
|
12
|
0.1
|
0.4
|
0.85
|
24
|
|
TLYBFC-EXd-G1/2-17h
|
6～12
|
9.5～17
|
12
|
0.1
|
0.4
|
0.9
|
30
|
|
G3/4
|
TLYBFC-EXd-G3/4-16h
|
6.1～11.6
|
9.5～15.9
|
12
|
0.1
|
0.4
|
0.9
|
30
|
|
TLYBFC-EXd-G3/4-29h
|
11.1～14
|
18.7～29
|
16
|
0.1
|
0.7
|
1.4
|
43
|
|
G 1"
|
TLYBFC-EXd-G1-25h
|
11.1～19.9
|
18.7～25
|
16
|
0.1
|
0.7
|
1.4
|
43
|
|
TLYBFC-EXd-G1-35h
|
17～21
|
22.9～35
|
16
|
0.1
|
0.7
|
1.4
|
50
|
|
G1 1/4
|
TLYBFC-EXd-G1-1/4-30h
|
17～26.2
|
22.9～30
|
16
|
0.1
|
0.7
|
1.6/2.0
|
50
|
|
TLYBFC-EXd-G1-1/4-42h
|
22～28
|
26～42
|
16
|
0.1
|
0.8
|
1.4
|
60
|
|
G1 1/2
|
TLYBFC-EXd-G1-1/2-35h
|
22～32.1
|
26～35
|
17
|
0.2
|
0.8
|
2.5
|
60
|
|
TLYBFC-EXd-G1-1/2-48h
|
29.5～39
|
35.5～48
|
17
|
0.2
|
0.63
|
1.4
|
65
|
|
G 2"
|
TLYBFC-EXd-G2-45h
|
29.5～38.1
|
35.5～45
|
17
|
0.2
|
0.63
|
2.0/2.5
|
65
|
|
TLYBFC-EXd-G2-62h
|
40.1～51
|
45.6～62
|
17
|
0.2
|
0.63
|
1.5
|
80
|
|
G2 1/2
|
TLYBFC-EXd-G2-1/2-55h
|
47.2～50
|
45.6～55
|
19
|
0.3
|
0.63
|
2.5
|
80
|
|
TLYBFC-EXd-G2-1/2-74h
|
52.8～63
|
57～74
|
19
|
0.3
|
0.81
|
1.5
|
92
|
|
G 3"
|
TLYBFC-EXd-G3-72h
|
52.8～61.9
|
57～72.1
|
19
|
0.3
|
0.81
|
2.5
|
92
|
|
TLYBFC-EXd-G3-79h
|
59.167.9
|
60.478.5
|
19
|
0.3
|
0.81
|
2.5/3.15
|
92
|
|
TLYBFC-EXd-G3-93h
|
70～86
|
76～93
|
19
|
0.3
|
0.94
|
1.6
|
117
|
|
G 4"
|
TLYBFC-EXd-G4-93h
|
70～86
|
76～93
|
19
|
0.3
|
0.936
|
1.6
|
117
|
|
双密封铠装防爆填料函-II型隔爆(美制牙)
|
|
螺牙规格
|
订货号
|
电缆外径密封范围
|
螺纹长度
|
钢带大厚度
|
网带大厚度
|
大直径B（mm）Max
|
|
英制
|
A(mm)
|
B(mm)
|
L(mm)
|
min
|
max
|
02(mm)Max
|
|
NPT1/2
|
TLYBFC-EXd-NPT1/2-13h
|
3.1～8.6
|
6.1～13.4
|
12
|
0.1
|
0.4
|
0.85
|
24
|
|
TLYBFC-EXd-NPT1/2-17h
|
6～12
|
9.5～17
|
12
|
0.1
|
0.4
|
0.9
|
30
|
|
NPT3/4
|
TLYBFC-EXd-NPT3/4-16h
|
6.1～11.6
|
9.5～15.9
|
12
|
0.1
|
0.4
|
0.9
|
30
|
|
TLYBFC-EXd-NPT3/4-29h
|
11.1～14
|
18.7～29
|
16
|
0.1
|
0.7
|
1.4
|
43
|
|
NPT 1"
|
TLYBFC-EXd-NPT1-25h
|
11.1～19.9
|
18.7～25
|
16
|
0.1
|
0.7
|
1.4
|
43
|
|
TLYBFC-EXd-NPT1-35h
|
17～21
|
22.9～35
|
16
|
0.1
|
0.7
|
1.4
|
50
|
|
NPT1 1/4
|
TLYBFC-EXd-NPT1-1/4-30h
|
17～26.2
|
22.9～30
|
16
|
0.1
|
0.7
|
1.6/2.0
|
50
|
|
TLYBFC-EXd-NPT1-1/4-42h
|
22～28
|
26～42
|
16
|
0.1
|
0.8
|
1.4
|
60
|
|
NPT1 1/2
|
TLYBFC-EXd-NPT1-1/2-35h
|
22～32.1
|
26～35
|
17
|
0.2
|
0.8
|
2.5
|
60
|
|
TLYBFC-EXd-NPT1-1/2-48h
|
29.5～39
|
35.5～48
|
17
|
0.2
|
0.63
|
1.4
|
65
|
|
NPT 2"
|
TLYBFC-EXd-NPT2-45h
|
29.5～38.1
|
35.5～45
|
17
|
0.2
|
0.63
|
2.0/2.5
|
65
|
|
TLYBFC-EXd-NPT2-45h
|
40.1～51
|
45.6～62
|
17
|
0.2
|
0.63
|
1.5
|
80
|
|
NPT2 1/2
|
TLYBFC-EXd-NPT2-1/2-55h
|
47.2～50
|
45.6～55
|
19
|
0.3
|
0.63
|
2.5
|
80
|
|
TLYBFC-EXd-NPT2-1/2-74h
|
52.8～63
|
57～74
|
19
|
0.3
|
0.81
|
1.5
|
92
|
|
NPT 3"
|
TLYBFC-EXd-NPT3-72h
|
52.8～61.9
|
57～72.1
|
19
|
0.3
|
0.81
|
2.5
|
92
|
|
TLYBFC-EXd-NPT3-79h
|
59.167.9
|
60.478.5
|
19
|
0.3
|
0.81
|
2.5/3.15
|
92
|
|
TLYBFC-EXd-NPT3-93h
|
70～86
|
76～93
|
19
|
0.3
|
0.94
|
1.6
|
117
|
|
NPT 4"
|
TLYBFC-EXd-NPT4-93h
|
70～86
|
76～93
|
19
|
0.3
|
0.936
|
1.6
|
117
|
