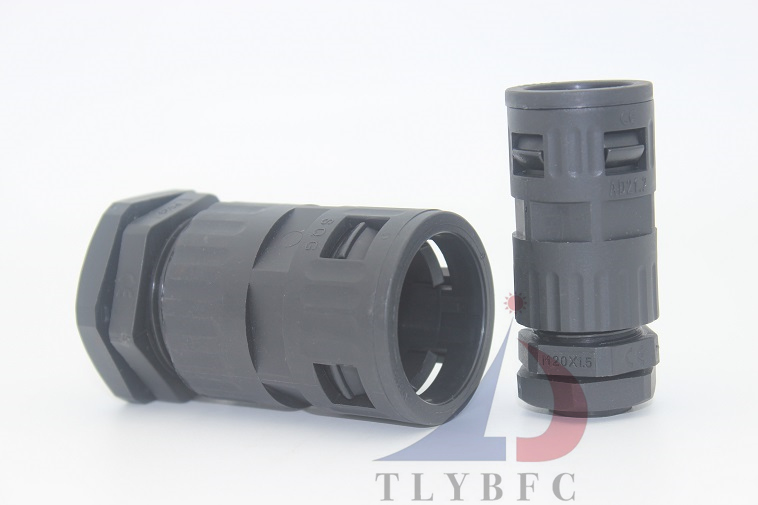

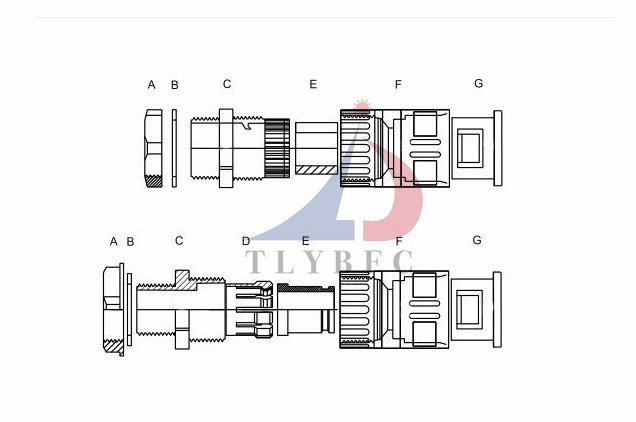

产品材质： A.C.F.G.部分采用尼龙66制成，D部分采用尼龙PA66制成，
B.E部分采用EPDM耐候橡胶制成
螺牙规格： 公制牙（Metric/ EN50262）、PG牙、G（PF）牙及美制牙（NPT）
工作温度： -40℃~+100℃，短时可达+120℃。
产品颜色： A.C.F.G部位尼龙，D为白色，B.E为黑色
防护等级： IP66、 IP68
颜色：深灰色、黑色
产品特性
含锁紧电缆接头可以同时锁紧电缆，不是电缆滑落，安装快速，便捷，不易松脱。内锁扣和本体特殊设计，装卸只需
拨插无需工具。它的主要作用是使线路通畅，使软管保持密封，并保证软管接头处的绝缘等级，使其安全可靠地
运行。若是密封不良，不仅会漏油造成油浸纸干枯，而且潮气也会侵入电缆内部，使纸绝缘性能下降。独特的凹
槽设计避免螺纹与O型圈直接接触，防止磨损，达到更好的密封效果。配套锁式电缆接头，防电线松动，内锁扣
合本体特殊设计，装卸只需拔插无需工具，大大缩减了安装时间，夹紧电缆范围大，抗拉力特强，产品有耐酸碱、
耐化学物质与一般溶剂等抗腐蚀特性，可防水、防尘 全方位的尺寸可广泛应用于各个领域的出线孔上。
|
型号
|
螺纹规格
|
适配软管
|
卡口范围
|
长度
|
孔径
|
外径
|
长度
|
包装单位
|
|
TLYBFC-DSJ-M12
|
M12X1.5
|
AD10.0
|
3-6.5
|
8
|
7
|
17
|
53
|
50
|
|
TLYBFC-DSJ-M16
|
M16X1.5
|
AD13.0
|
4-8
|
8
|
8
|
20
|
56
|
50
|
|
TLYBFC-DSJ-M16
|
M16X1.5
|
AD15.8
|
5-10
|
8
|
10
|
23
|
58.5
|
50
|
|
TLYBFC-DSJ-M18
|
M18X1.5
|
AD15.8
|
5-10
|
8
|
10
|
23
|
58.5
|
50
|
|
TLYBFC-DSJ-M20
|
M20X1.5
|
AD18.5
|
6-12
|
9
|
12
|
26
|
63
|
50
|
|
TLYBFC-DSJ-M20
|
M20X1.5
|
AD21.2
|
8-14
|
10
|
14
|
29.5
|
69
|
25
|
|
TLYBFC-DSJ-M22
|
M22X1.5
|
AD21.2
|
8-14
|
10
|
14
|
29.5
|
69
|
25
|
|
TLYBFC-DSJ-M25
|
M25X1.5
|
AD25.5
|
13-18
|
11
|
18
|
34
|
73.5
|
10
|
|
TLYBFC-DSJ-M25
|
M25X1.5
|
AD28.5
|
13-18
|
11
|
18
|
37
|
74
|
10
|
|
TLYBFC-DSJ-M32
|
M32X1.5
|
AD31.5
|
18-25
|
12
|
25
|
41
|
85
|
10
|
|
TLYBFC-DSJ-M32
|
M32X1.5
|
AD34.5
|
18-25
|
11
|
25
|
44
|
85
|
10
|
|
TLYBFC-DSJ-M40
|
M40X1.5
|
AD42.5
|
22-32
|
13
|
32
|
52
|
98
|
10
|
|
TLYBFC-DSJ-M50
|
M50X1.5
|
AD54.5
|
30-38
|
15
|
38
|
64
|
103
|
5
|
|
TLYBFC-DSJ-M63
|
M63X1.5
|
AD54.5
|
37-44
|
15
|
44
|
64
|
101.5
|
5
|
|
型号
|
螺纹规格
|
适配软管
|
卡口范围
|
螺纹长度
|
孔径
|
外径
|
长度
|
包装单位
|
|
TLYBFC-DSJ-PG07
|
PG07
|
AD10.0
|
3-6.5
|
8
|
7
|
17
|
53
|
50
|
|
TLYBFC-DSJ-PG09
|
PG09
|
AD13.0
|
4-8
|
8
|
8
|
20
|
56
|
50
|
|
TLYBFC-DSJ-PG11
|
PG11
|
AD15.8
|
5-10
|
8
|
10
|
23
|
58.5
|
50
|
|
TLYBFC-DSJ-PG13.5
|
PG13.5
|
AD18.5
|
6-12
|
9
|
12
|
26
|
63
|
50
|
|
TLYBFC-DSJ-PG16
|
PG16
|
AD21.2
|
8-14
|
10
|
14
|
29.5
|
69
|
25
|
|
TLYBFC-DSJ-PG21
|
PG21
|
AD25.5
|
13-18
|
11
|
18
|
34
|
73.5
|
10
|
|
TLYBFC-DSJ-PG21
|
PG21
|
AD28.5
|
13-18
|
11
|
18
|
37
|
74
|
10
|
|
TLYBFC-DSJ-PG29
|
PG29
|
AD31.5
|
18-25
|
12
|
25
|
41
|
85
|
10
|
|
TLYBFC-DSJ-PG29
|
PG29
|
AD34.5
|
18-25
|
11
|
25
|
44
|
85
|
10
|
|
TLYBFC-DSJ-PG36
|
PG36
|
AD42.5
|
22-32
|
13
|
32
|
52
|
98
|
10
|
|
TLYBFC-DSJ-PG48
|
PG48
|
AD54.5
|
37-44
|
15
|
44
|
64
|
101.5
|
5
|
|
内螺纹波纹管接头
适配波纹管
|
适配电缆防水接头规格
Metric PG G(PF) NPT
|
|
AD10
|
MGB12S-6.5
|
PGB7S-6.5
|
|
|
|
AD13
|
MGB12-5.5
|
PGB7-5.5
|
GB1/4-5.5
|
NPT1/4B-5.5
|
|
MGB12-8
|
PGB7-8
|
GB1/4-8
|
NPT1/4B-6.8
|
|
MGA12-5.5
|
PGA7-5.5
|
PFA1/4-5.5
|
|
|
MGA12-8
|
PGA7-8
|
PFA1/4-8
|
|
|
MGB16S-5.5
|
PGB9-5.5
|
|
|
|
MGB16S-8
|
PGB9-7.5
|
|
|
|
MGA16S-5.5
|
PGA9-5.5
|
|
|
|
MGA16S-8
|
PGA9-8
|
|
|
|
AD15.8
|
MGB16-7
|
PGB11-7
|
GB3/8 -7
|
NTP3/8B-7
|
|
MGB16-10
|
PGB11-10
|
GB3/8-10
|
NPT3/8B-10
|
|
MGA16-7
|
PGA11-7
|
PFA3/8-7
|
|
|
MGA16-10
|
PGA11-10
|
PFA3/8-10
|
|
|
MGB18-7
|
|
|
|
|
MGB18-10
|
|
|
|
|
MGB20M-7
|
|
|
|
|
MGB20M-10
|
|
|
|
|
AD18.5
|
MGB20S-9
|
PGB13.5-9
|
GB1/2-9
|
NPT1/2B-9
|
|
MGB20S-12.5
|
PGB13.5-12.5
|
GB1/2-12.5
|
NPT1/2B-12.5
|
|
MGA20S-9
|
PGA13.5-9
|
PFA1/2-9
|
|
|
MGA20S-12.5
|
PGA13.5-12.5
|
PFA1/2-12.5
|
|
|
AD21.2
|
MGB20-11
|
PGA13.5-11
|
PFA1/2-11
|
|
|
MGB20-14
|
PGA13.5-14
|
PFA1/2-14
|
|
|
MGA20-11
|
PGB16-11
|
|
|
|
MGA20-14
|
PGB16-14
|
|
|
|
MGB22-11
|
PGA16-11
|
|
|
|
MGB22-14
|
PGA16-14
|
|
|
|
MGA22-11
|
PGB19-11
|
|
|
|
MGA22-14
|
PGB19-14
|
|
|
|
MGB25S-11
|
|
|
|
|
MGB25S-14
|
|
|
|
|
MGA25S-11
|
|
|
|
|
MGA25S-14
|
|
|
|
|
AD25
|
MGB25-13
|
PGB21-13
|
GB3/4-13
|
NPT3/4B-13
|
|
MGB25-16
|
PGB21-16
|
GB3/4-16
|
NPT3/4B-16
|
|
MGB25-18
|
PGB21-18
|
GB3/4-18
|
NPT3/4B-18
|
|
MGA25-16
|
PGA21-16
|
PFA3/4-16
|
|
|
MGA25-18
|
PGA21-18
|
PFA3/4-18
|
|
|
AD28.5
|
MGB25-13
|
PGB21-13
|
GB3/4-13
|
NPT3/4B-13
|
|
MGB25-16
|
PGB21-16
|
GB3/4-16
|
NPT3/4B-16
|
|
MGB25-18
|
PGB21-18
|
GB3/4-18
|
NPT3/4B-18
|
|
MGA25-16
|
PGA21-16
|
PFA3/4-16
|
|
|
MGA25-18
|
PGA21-18
|
PFA3/4-18
|
|
|
AD34.5
|
MGB32-17.5
|
PGB29-17.5
|
GB1-17.5
|
NPT1B-17.5
|
|
MGB32-22
|
PGB29-22
|
GB1-22
|
NPT1B-22
|
|
MGB32-25
|
PGB29-25
|
GB1-25
|
NPT1B-25
|
|
MGB36-17.5
|
|
|
|
|
MGB36-22
|
|
|
|
|
MGB36-25
|
|
|
|
|
AD42.5
|
MGB40-25
|
PGB36-25
|
GB1 1/4-25
|
NPT1 1/4B-25
|
|
MGB40-31
|
PGB36-31
|
GB 1 1/4-31
|
NPT1 1/4B-31
|
|
MGA40-25
|
PGA36-25
|
PFA1 1/4-25
|
|
|
MGA40-31
|
PGA36-31
|
PFA1 1/4-31
|
|
