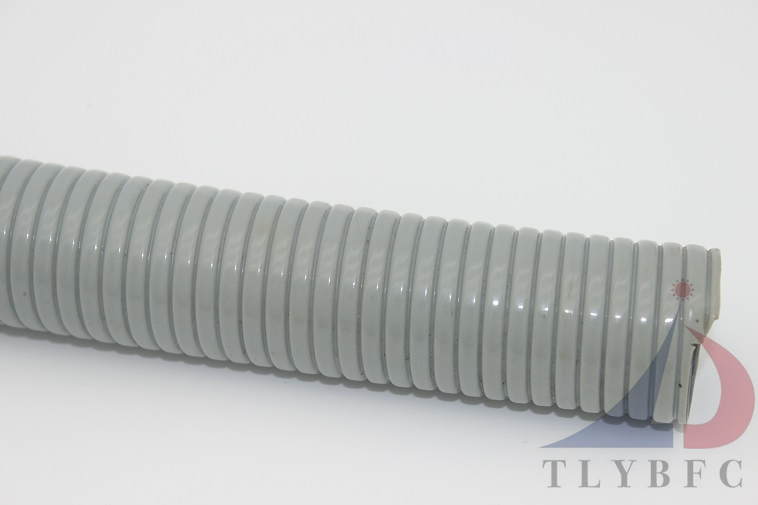

材质：不锈钢201或304，内JS外PVC或PU包塑组成, 外层包塑低烟无毒环保，表
面加PVC或PU被覆，且PVC或PU塑料其中添加防火阻燃剂，并加抗UV紫外线和防
止老化作用之成份。
性能：软管有防水，绝缘性，抗拉性强，柔软性好，弯曲性能强，结构为反
扣型能增加抗拉强度，不容易折断或变形。
温度范围：-25℃至80℃，短时间达100℃，可定制抗高温耐低温产品。
防护等级：IP68
阻燃等级：V0（UL94）
产品颜色： 黑色和灰色
产品特性：
1、软管具有防水、绝缘性、抗拉性。

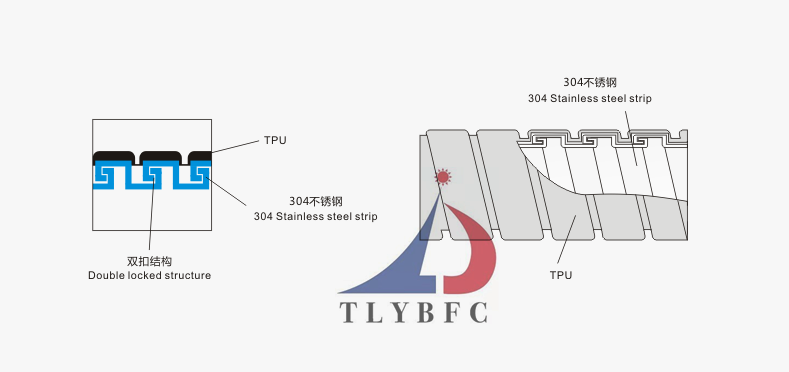

2、表面采用TPU材料低烟无卤、环保安全。内部采用不锈钢带。
3、双扣结构，有很强的抗拉性，不容易折断或变形。
4、内部平滑构造在穿引电线电缆时极容易。
应用领域：用于机器人、航天航空设备、高铁地铁、电力发电、铁路轨道交通、
机床机械设备、照明设备、 机车，交通系统工程，空调，各种机械，自动化控
制设备，化工， 输配电系统，通信系统，船舶，大厦，厂房内及屋外露出部分
之配线保护。
产品用途： 保护电线电缆以及达到绝缘、防水、并可增进线缆弯曲美观。
使用方法： 先将电线电缆穿入管内，再配上TLYBFC-DPJ型接头相应的型号即可。
PVC包塑
|
灰色编号
|
黑色编号
|
公称内径
|
英制规格
|
外径及允许偏差
|
自然弯曲半径
|
包装数量
|
|
TLYBFC-JSH-SS-PVC-6G
|
TLYBFZ-JSH-SS-PVC-6B
|
6
|
3/16
|
9.00±0.4
|
40
|
100
|
|
TLYBFC-JSH-SS-PVC-8G
|
TLYBFZ-JSH-SS-PVC-8B
|
8
|
1/4
|
11.8±0.4
|
45
|
100
|
|
TLYBFC-JSH-SS-PVC-10G
|
TLYBFZ-JSH-SS-PVC-10B
|
10
|
5/16
|
14.5±04
|
55
|
50
|
|
TLYBFC-JSH-SS-PVC-12G
|
TLYBFZ-JSH-SS-PVC-12B
|
12
|
3/8
|
16.8±0.5
|
65
|
50
|
|
TLYBFC-JSH-SS-PVC-15G
|
TLYBFZ-JSH-SS-PVC-15B
|
15
|
1/2
|
20.2±0.5
|
85
|
50
|
|
TLYBFC-JSH-SS-PVC-20G
|
TLYBFZ-JSH-SS-PVC-20B
|
20
|
3/4
|
25.0±0.5
|
100
|
50
|
|
TLYBFC-JSH-SS-PVC-25G
|
TLYBFZ-JSH-SS-PVC-25B
|
25
|
1
|
30.7±0.5
|
120
|
50
|
|
TLYBFC-JSH-SS-PVC-32G
|
TLYBFZ-JSH-SS-PVC-32B
|
32
|
1 1/4
|
38.6±0.5
|
150
|
25
|
|
TLYBFC-JSH-SS-PVC-38G
|
TLYBFZ-JSH-SS-PVC-38B
|
38
|
1 1/2
|
44.6±0.6
|
180
|
25
|
|
TLYBFC-JSH-SS-PVC-51G
|
TLYB-JSH-SS-PVC-51B
|
51
|
2
|
59.0±1.0
|
220
|
20
|
|
TLYBFC-JSH-SS-PVC-64G
|
TLYBFZ-JSH-SS-PVC-64B
|
64
|
2 1/2
|
73.5±1.5
|
310
|
10
|
|
TLYBFC-JSH-SS-PVC-75G
|
TLYBFZ-JSH-SS-PVC-75B
|
75
|
3
|
83.5±2.0
|
350
|
10
|
|
TLYBFC-JSH-SS-PVC-100G
|
TLYBFZ-JSH-SS-PVC-100B
|
100
|
4
|
109.5±3.0
|
410
|
10
|
|
TLYBFC-JSH-SS-PVC-125G
|
TLYB-JSH-SS-PVC-125B
|
125
|
5
|
135.5±3.0
|
460
|
5
|
|
TLYBFC-JSH-SS-PVC-150G
|
TLYB-JSH-SS-PVC-150B
|
150
|
6
|
161.5±4.0
|
500
|
5
|
PU包塑
|
灰色编号
|
黑色编号
|
公称内径
|
英制规格
|
外径及允许偏差
|
自然弯曲半径
|
包装数量
|
|
TLYBFC-JSH-SS-PU-6G
|
TLYBFZ-JSH-SS-PU-6B
|
6
|
3/16
|
9.00±0.4
|
40
|
100
|
|
TLYBFC-JSH-SS-PU-8G
|
TLYBFZ-JSH-SS-PU-8B
|
8
|
1/4
|
11.8±0.4
|
45
|
100
|
|
TLYBFC-JSH-SS-PU-10G
|
TLYBFZ-JSH-SS-PU-10B
|
10
|
5/16
|
14.5±0.4
|
55
|
50
|
|
TLYBFC-JSH-SS-PU-12G
|
TLYBFZ-JSH-SS-PU-12B
|
12
|
3/8
|
16.8±0.5
|
65
|
50
|
|
TLYBFC-JSH-SS-PU-15G
|
TLYBFZ-JSH-SS-PU-15B
|
15
|
1/2
|
20.2±0.5
|
85
|
50
|
|
TLYBFC-JSH-SS-PU-20G
|
TLYBFZ-JSH-SS-PU-20B
|
20
|
3/4
|
25.0±0.5
|
100
|
50
|
|
TLYBFC-JSH-SS-PU-25G
|
TLYBFZ-JSH-SS-PU-25B
|
25
|
1
|
30.7±0.5
|
120
|
50
|
|
TLYBFC-JSH-SS-PU-32G
|
TLYBFZ-JSH-SS-PU-32B
|
32
|
1 1/4
|
38.6±0.5
|
150
|
25
|
|
TLYBFC-JSH-SS-PU-38G
|
TLYBFZ-JSH-SS-PU-38B
|
38
|
1 1/2
|
44.6±0.6
|
180
|
25
|
|
TLYBFC-JSH-SS-PU-51G
|
TLYB-JSH-SS-PU-51B
|
51
|
2
|
59.0±1.0
|
220
|
20
|
|
TLYBFC-JSH-SS-PU-64G
|
TLYBFZ-JSH-SS-PU-64B
|
64
|
2 1/2
|
73.5±1.5
|
310
|
10
|
|
TLYBFC-JSH-SS-PU-75G
|
TLYBFZ-JSH-SS-PU-75B
|
75
|
3
|
83.5±2.0
|
350
|
10
|
|
TLYBFC-JSH-SS-PU-100G
|
TLYBFZ-JSH-SS-PU-100B
|
100
|
4
|
109.5±3.0
|
410
|
10
|
|
TLYBFC-JSH-SS-PU-125G
|
TLYB-JSH-SS-PU-125B
|
125
|
5
|
135.5±3.0
|
460
|
5
|
|
TLYBFC-JSH-SS-PU-150G
|
TLYB-JSH-SS-PU-150B
|
150
|
6
|
161.5±4.0
|
500
|
5
|
PA包塑
|
灰色编号
|
黑色编号
|
公称内径
|
英制规格
|
外径及允许偏差
|
自然弯曲半径
|
包装数量
|
|
TLYBFC-JSH-SS-PA-6G
|
TLYBFZ-JSH-SS-PA-6B
|
6
|
3/16
|
9.00±0.25
|
40
|
100
|
|
TLYBFC-JSH-SS-PA-8G
|
TLYBFZ-JSH-SS-PA-8B
|
8
|
1/4
|
11.8±0.30
|
45
|
100
|
|
TLYBFC-JSH-SS-PA-10G
|
TLYBFZ-JSH-SS-PA-10B
|
10
|
5/16
|
14.5±0.30
|
55
|
50
|
|
TLYBFC-JSH-SS-PA-12G
|
TLYBFZ-JSH-SS-PA-12B
|
12
|
3/8
|
16.8±0.35
|
65
|
50
|
|
TLYBFC-JSH-SS-PA-15G
|
TLYBFZ-JSH-SS-PA-15B
|
15
|
1/2
|
20.2±0.35
|
85
|
50
|
|
TLYBFC-JSH-SS-PA-20G
|
TLYBFZ-JSH-SS-PA-20B
|
20
|
3/4
|
25.0±0.40
|
100
|
50
|
|
TLYBFC-JSH-SS-PA-25G
|
TLYBFZ-JSH-SS-PA-25B
|
25
|
1
|
30.7±0.45
|
120
|
50
|
|
TLYBFC-JSH-SS-PA-32G
|
TLYBFZ-JSH-SS-PA-32B
|
32
|
1 1/4
|
38.6±0.50
|
150
|
25
|
|
TLYBFC-JSH-SS-PA-38G
|
TLYBFZ-JSH-SS-PA-38B
|
38
|
1 1/2
|
44.6±0.60
|
180
|
25
|
|
TLYBFC-JSH-SS-PA-51G
|
TLYB-JSH-SS-PA-51B
|
51
|
2
|
59.0±1.00
|
220
|
20
|
|
TLYBFC-JSH-SS-PA-64G
|
TLYBFZ-JSH-SS-PA-64B
|
64
|
2 1/2
|
73.5±1.50
|
310
|
10
|
|
TLYBFC-JSH-SS-PA-75G
|
TLYBFZ-JSH-SS-PA-75B
|
75
|
3
|
83.5±2.00
|
350
|
10
|
|
TLYBFC-JSH-SS-PA-100G
|
TLYBFZ-JSH-SS-PA-100B
|
100
|
4
|
109.5±3.00
|
410
|
10
|
|
TLYBFC-JSH-SS-PA-125G
|
TLYB-JSH-SS-PA-125B
|
125
|
5
|
135.5±3.00
|
460
|
5
|
|
TLYBFC-JSH-SS-PA-150G
|
TLYB-JSH-SS-PA-150B
|
150
|
6
|
161.5±4.00
|
500
|
5
|
