螺牙规格：公制牙MG螺牙，德制PG牙，英制G(PF)管制螺牙，美制NPT锥形螺牙。

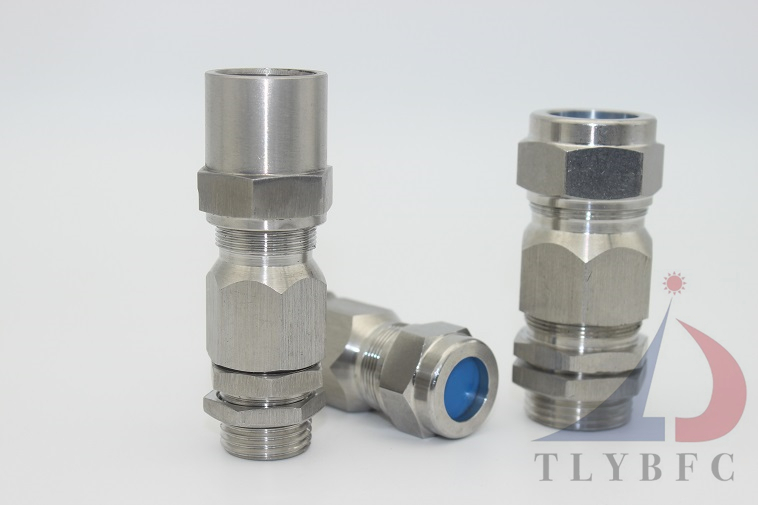

产品说明：采用黄铜或不锈钢304原材料配合数控机床加工制成，内置隔爆衬套和铠装电缆卡环，防爆功能特强，
适合各类钢带，钢丝铠装电缆。电缆锁紧采用填料密封，防护性能好.具有快捷安装，安全可靠，防护性能好，防
爆性能等特点，另抗拉力特强，可防水、防尘、抗盐、耐弱酸、油、油脂及一般溶剂，。
防护等级 ：在规定的卡口范围内，并使用密封圈旋紧迫紧头，达到IP66-10Bar ，根据要求可达到IP67/IP68.
工作温度 ：-40℃~＋120℃短时可达＋150℃
产品材質 ：黄铜或不锈钢搭配硅胶制成。
适用电缆类型：编织铠装、钢带铠装（STA）
可选附件：接地片、密封圈、螺母、菊花垫片、护套

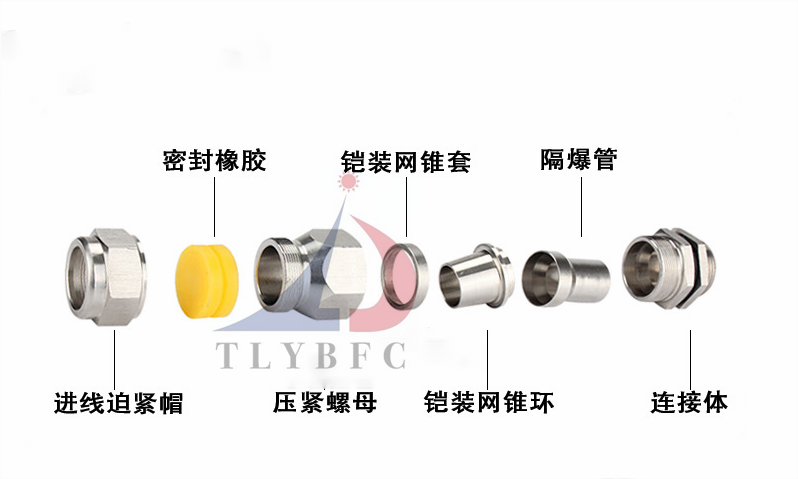

使用方法：先将铠装电缆外层剪开，然后固定在铠装电缆卡环上，最后旋紧迫紧螺帽即可。
适用场所 ：1区.2区危险场所及IIA.IIB.IIC类爆炸性气体环境。
可选配件 ：根据需要可以选择护套，胶泥，接地片等等。
备注：接受非标、定制等,欢迎来电咨询!
|
产品编码
|
螺纹规格 公制螺纹
|
螺纹规格 美制螺纹
|
螺纹规格 英制螺纹
|
出线电缆外径 A
|
出线电缆外径 B
|
螺纹长度
|
高度
|
包装数量
|
|
TLYBFC-BDMF-EX-SS
|
M16X1.5
|
NPT3/8
|
G3/8
|
5-8
|
7-15
|
15
|
71
|
50
|
TLYBFC-BDMF-EX-SS
|
20X1.5
|
NPT1/2
|
G1/2
|
5-10
|
8-15
|
15
|
71
|
25
|
TLYBFC-BDMF-EX-SS
|
M25X1.5
|
NPT3/4
|
G3/4
|
8-15
|
11-20
|
15
|
72
|
20
|
TLYBFC-BDMF-EX-SS
|
M32X1.5
|
NPT1
|
G1
|
11-20
|
14-27
|
17
|
77
|
20
|
TLYBFC-BDMF-EX-SS
|
M40X1.5
|
NPT1 1/4
|
G1 1/4
|
14-27
|
19-33
|
19
|
86
|
20
|
TLYBFC-BDMF-EX-SS
|
M50X1.5
|
NPT1 1/2
|
G1 1/2
|
16-31
|
22-40
|
19
|
89
|
15
|
TLYBFC-BDMF-EX-SS
|
M63X1.5
|
NPT2
|
G2
|
29-43
|
29-50
|
20
|
97
|
10
|
TLYBFC-BDMF-EX-SS
|
M75X1.5
|
NPT2 1/2
|
G2 1/2
|
38-55
|
35-63
|
21
|
103
|
5
|
TLYBFC-BDMF-EX-SS
|
M85X1.5
|
NPT3-Y
|
G3-H
|
48-65
|
41-77
|
24
|
106
|
5
|
TLYBFC-BDMF-EX-SS
|
M90X1.5
|
NPT3
|
G3
|
48-65
|
41-77
|
24
|
106
|
2
|
TLYBFC-BDMF-EX-SS
|
M100X1.5
|
NPT4-Y
|
G4-H
|
50-80
|
55-90
|
26
|
116
|
1
|
TLYBFC-BDMF-EX-SS
|
M110X1.5
|
NPT4
|
G4
|
48-90
|
61-104
|
26
|
116
|
1
|
|
产品型号
|
螺纹规格
|
电缆范围 进线
|
电缆范围 出线
|
主体高度
|
螺纹长度
|
扳手径 SW
|
|
TLYBFC-XJT08-M16
|
M16X1.5
|
5-8
|
3-6
|
64
|
15
|
24
|
|
TLYBFC-XJT10-M16
|
M16X1.5
|
6-10
|
4-8
|
64
|
15
|
24
|
|
TLYBFC-XJT14-M20
|
M20X1.5
|
9.0-14
|
6-11
|
64
|
15
|
24
|
|
TLYBFC-XJT16-M20
|
M20X1.5
|
11-16
|
7-12
|
65
|
15
|
30
|
|
TLYBFC-XJT18-M20
|
M20X1.5
|
13-18
|
9-14
|
65
|
15
|
30
|
|
TLYBFC-XJT21-M25
|
M25X1.5
|
15-21
|
11-17
|
70
|
15
|
34
|
|
TLYBFC-XJT24-M25
|
M25X1.5
|
17-24
|
13-20
|
70
|
15
|
40
|
|
TLYBFC-XJ28T-M32
|
M32X1.5
|
20-28
|
16-23
|
75
|
15
|
45
|
|
TLYBFC-XJT32-M32
|
M32X1.5
|
23-32
|
18-26
|
75
|
15
|
50
|
|
TLYBFC-XJT35-M40
|
M40X1.5
|
28-35
|
21-29
|
78
|
15
|
55
|
|
TLYBFC-XJT38-M40
|
M40X1.5
|
31-38
|
25-32
|
78
|
15
|
57
|
|
TLYBFC-XJT41-M50
|
M50X1.5
|
34-41
|
28-35
|
93
|
15
|
60
|
|
TLYBFC-XJT44-M50
|
M50X1.5
|
37-44
|
31-38
|
93
|
15
|
62
|
|
TLYBFC-XJT48-M63
|
M63X1.5
|
40-48
|
33-43
|
98
|
15
|
68
|
|
TLYBFC-XJT55-M63
|
M63X1.5
|
45-55
|
36-47
|
98
|
16
|
70
|
|
TLYBFC-XJT61-M78
|
M78X2.0
|
51-61
|
42-53
|
102
|
16
|
84
|
|
TLYBFC-XJT68-M78
|
M78X2.0
|
58-68
|
45-58
|
102
|
16
|
90
|
|
TLYBFC-XJT73-M88
|
M88X2.0
|
62-73
|
52-62
|
105
|
18
|
97
|
|
TLYBFC-XJT79-M88
|
M88X2.0
|
67-79
|
56-67
|
105
|
18
|
102
|
|
TLYBFC-XJT89-M100
|
M100X2.0
|
78-89
|
65-75
|
110
|
18
|
115
|
|
产品型号
|
螺纹规格
|
电缆范围 进线
|
电缆范围 出线
|
主体高度
|
螺纹长度
|
扳手径 SW
|
|
TLYBFC-XJT08-G1/2
|
G1/2
|
5-8
|
3-6
|
64
|
15
|
24
|
|
TLYBFC-XJT10-G1/2
|
G1/2
|
6-10
|
4-8
|
64
|
15
|
24
|
|
TLYBFC-XJT14-G1/2
|
G1/2
|
9.0-14
|
6-11
|
64
|
15
|
24
|
|
TLYBFC-XJT16-G1/2
|
G1/2
|
11-16
|
7-12
|
65
|
15
|
30
|
|
TLYBFC-XJT18-G1/2
|
G1/2
|
13-18
|
9-14
|
65
|
15
|
30
|
|
TLYBFC-XJT21-G3/4
|
G3/4
|
15-21
|
11-17
|
70
|
15
|
34
|
|
TLYBFC-XJT24-G3/4
|
G3/4
|
17-24
|
13-20
|
70
|
15
|
40
|
|
TLYBFC-XJ28T-G1**
|
G1**
|
20-28
|
16-23
|
75
|
15
|
45
|
|
TLYBFC-XJT32-G1**
|
G1**
|
23-32
|
18-26
|
75
|
15
|
50
|
|
TLYBFC-XJT35-G1 1/4
|
G1 1/4
|
28-35
|
21-29
|
78
|
15
|
55
|
|
TLYBFC-XJT38-G1 1/4
|
G1 1/4
|
31-38
|
25-32
|
78
|
15
|
57
|
|
TLYBFC-XJT41-G1 1/2
|
G1 1/2
|
34-41
|
28-35
|
93
|
15
|
60
|
|
TLYBFC-XJT44-G1 1 /2
|
G1 1/2
|
37-44
|
31-38
|
93
|
15
|
62
|
|
TLYBFC-XJT48-G2**
|
G2**
|
40-48
|
33-43
|
98
|
15
|
68
|
|
TLYBFC-XJT55-G2**
|
G2**
|
45-55
|
36-47
|
98
|
16
|
70
|
|
TLYBFC-XJT61-G2 1/2
|
G2 1/2
|
51-61
|
42-53
|
102
|
16
|
84
|
|
TLYBFC-XJT68-G2 1/2
|
G2 1/2
|
58-68
|
45-58
|
102
|
16
|
90
|
|
TLYBFC-XJT73-G3**
|
G3**
|
62-73
|
52-62
|
105
|
18
|
97
|
|
TLYBFC-XJT79-G3**
|
G3**
|
67-79
|
56-67
|
105
|
18
|
102
|
|
TLYBFC-XJT89-G3 1/2
|
G3 1/2
|
78-89
|
65-75
|
110
|
18
|
115
|
|
产品型号
|
螺纹规格
|
电缆范围 进线
|
电缆范围 出线
|
主体高度
|
螺纹长度
|
扳手径 SW
|
|
TLYBFC-XJT08-NPT1/2
|
NPT1/2
|
5-8
|
3-6
|
64
|
15
|
24
|
|
TLYBFC-XJT10-NPT1/2
|
NPT1/2
|
6-10
|
4-8
|
64
|
15
|
24
|
|
TLYBFC-XJT14-NPT1/2
|
NPT1/2
|
9.0-14
|
6-11
|
64
|
15
|
24
|
|
TLYBFC-XJT16-NPT1/2
|
NPT1/2
|
11-16
|
7-12
|
65
|
15
|
30
|
|
TLYBFC-XJT18-NPT1/2
|
NPT1/2
|
13-18
|
9-14
|
65
|
15
|
30
|
|
TLYBFC-XJT21-NPT3/4
|
GNPT/4
|
15-21
|
11-17
|
70
|
15
|
34
|
|
TLYBFC-XJT24-NPT3/4
|
NPT3/4
|
17-24
|
13-20
|
70
|
15
|
40
|
|
TLYBFC-XJ28T-NPT1**
|
NPT1**
|
20-28
|
16-23
|
75
|
15
|
45
|
|
TLYBFC-XJT32-NPT1**
|
NPT1**
|
23-32
|
18-26
|
75
|
15
|
50
|
|
TLYBFC-XJT35-NPT1 1/4
|
NPT1 1/4
|
28-35
|
21-29
|
78
|
15
|
55
|
|
TLYBFC-XJT38-NPT1 1/4
|
NPT1 1/4
|
31-38
|
25-32
|
78
|
15
|
57
|
|
TLYBFC-XJT41-NPT1 1/2
|
NPT1 1/2
|
34-41
|
28-35
|
93
|
15
|
60
|
|
TLYBFC-XJT44-NNPT 1 /2
|
NPT1 1/2
|
37-44
|
31-38
|
93
|
15
|
62
|
|
TLYBFC-XJT48-NPT2**
|
NPT2**
|
40-48
|
33-43
|
98
|
15
|
68
|
|
TLYBFC-XJT55-NPT2**
|
NPT2**
|
45-55
|
36-47
|
98
|
16
|
70
|
|
TLYBFC-XJT61-NPT2 1/2
|
NPT2 1/2
|
51-61
|
42-53
|
102
|
16
|
84
|
|
TLYBFC-XJT68-NPT2 1/2
|
NPT2 1/2
|
58-68
|
45-58
|
102
|
16
|
90
|
|
TLYBFC-XJT73-NPT3**
|
NPT3**
|
62-73
|
52-62
|
105
|
18
|
97
|
|
TLYBFC-XJT79-NPT3**
|
NPT3**
|
67-79
|
56-67
|
105
|
18
|
102
|
|
TLYBFC-XJT89-NPT3 1/2
|
NPT3 1/2
|
78-89
|
65-75
|
110
|
18
|
115
|
