螺牙规格：公制牙MG螺牙，德制PG牙，英制G(PF)管制螺牙，美制NPT锥形螺牙。

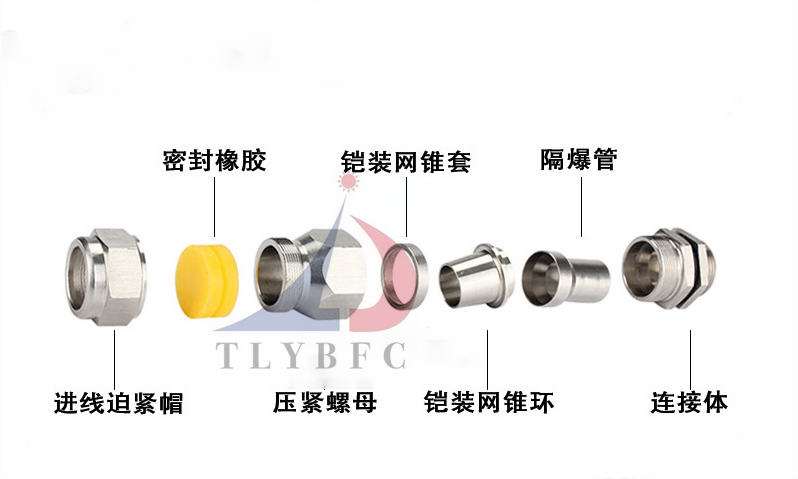

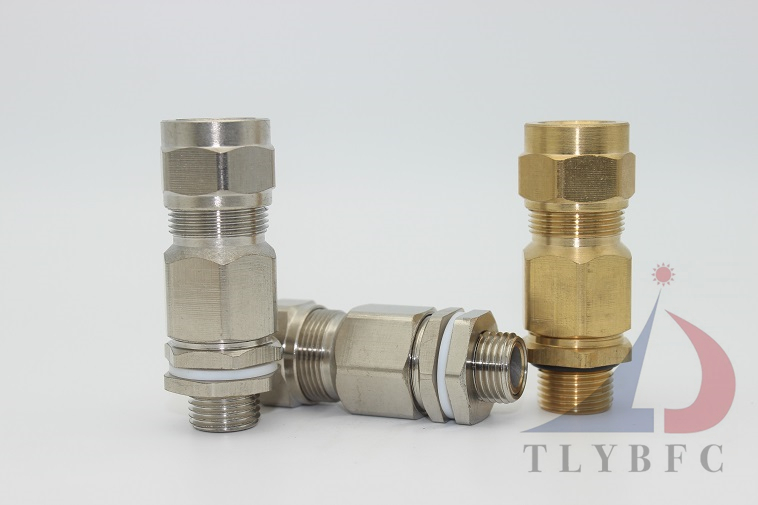

产品说明：采用黄铜原材料配合数控机床加工制成，内置隔爆衬套和铠装电缆卡环，防爆功能特强，适合各类钢带，
钢丝铠装电缆。电缆锁紧采用填料密封，防护性能好.具有快捷安装，安全可靠，防护性能好，防爆性能
等特点，另抗拉力特强，可防水、防尘、抗盐、耐弱酸、油、油脂及一般溶剂，。
防护等级 ：在规定的卡口范围内，并使用密封圈旋紧迫紧头，达到IP66-10Bar ，根据要求可达到IP67/IP68.
工作温度 ：-40℃~＋120℃短时可达＋150℃
产品材质 ：黄铜搭配硅胶制成。
适用电缆类型：编织铠装、钢带铠装（STA）
可选附件：接地片、密封圈、螺母、菊花垫片、护套
使用方法：先将铠装电缆外层剪开，然后固定在铠装电缆卡环上，旋紧迫紧螺帽即可。
适用场所 ：1区.2区危险场所及IIA.IIB.IIC类爆炸性气体环境。
可选配件 ：根据需要可以选择护套，胶泥，接地片等等。
备注：接受非标、定制等,欢迎来电咨询
|
产品编码
|
螺纹规格 公制螺纹
|
螺纹规格 美制螺纹
|
螺纹规格 英制螺纹
|
出线电缆外径 A
|
出线电缆外径 B
|
螺纹长度
|
高度
|
包装数量
|
|
TLYBFC-DMF-EX
|
M16X1.5
|
NPT3/8
|
G3/8
|
5-8
|
7-15
|
15
|
71
|
50
|
TLYBFC-DMF-EX
|
M20X1.5
|
NPT1/2
|
G1/2
|
5-10
|
8-15
|
15
|
71
|
25
|
TLYBFC-DMF-EX
|
M25X1.5
|
NPT3/4
|
G3/4
|
8-15
|
11-20
|
15
|
72
|
20
|
TLYBFC-DMF-EX
|
M32X1.5
|
NPT1
|
G1
|
11-20
|
14-27
|
17
|
77
|
20
|
TLYBFC-DMF-EX
|
M40X1.5
|
NPT1 1/4
|
G1 1/4
|
14-27
|
19-33
|
19
|
86
|
20
|
TLYBFC-DMF-EX
|
M50X1.5
|
NPT1 1/2
|
G1 1/2
|
16-31
|
22-40
|
19
|
89
|
15
|
TLYBFC-DMF-EX
|
M63X1.5
|
NPT2
|
G2
|
29-43
|
29-50
|
20
|
97
|
10
|
TLYBFC-DMF-EX
|
M75X1.5
|
NPT2 1/2
|
G2 1/2
|
38-55
|
35-63
|
21
|
103
|
5
|
TLYBFC-DMF-EX
|
M85X1.5
|
NPT3-Y
|
G3-H
|
48-65
|
41-77
|
24
|
106
|
5
|
TLYBFC-DMF-EX
|
M90X1.5
|
NPT3
|
G3
|
48-65
|
41-77
|
24
|
106
|
2
|
TLYBFC-DMF-EX
|
M100X1.5
|
NPT4-Y
|
G4-H
|
50-80
|
55-90
|
26
|
116
|
1
|
TLYBFC-DMF-EX
|
M110X1.5
|
NPT4
|
G4
|
48-90
|
61-104
|
26
|
116
|
1
|
|
黄铜铠装防爆填料函-II型隔爆(公制牙)
|
|
螺牙规格
|
订货型号
|
电缆外径密封范围
|
螺纹长度
|
钢带厚度
|
网带厚度
|
大直径B
|
|
公制
|
A(mm)
|
B(mm)
|
L(mm)
|
min
|
max
|
(mm)Max
|
（mm）
|
|
M20
|
TLYBFC-EXd-M20-14h
|
3.1～8.6
|
6.1～14.0
|
12
|
0.1
|
0.4
|
0.85
|
24
|
|
TLYBFC-EXd-M20-16h
|
6～12
|
9.5～16
|
12
|
0.1
|
0.4
|
0.9
|
30
|
|
M25
|
TLYBFC-EXd-M25-16h
|
6.1～11.6
|
9.5～15.9
|
12
|
0.1
|
0.4
|
0.9
|
30
|
|
TLYBFC-EXd-M25-29h
|
11.1～14
|
18.7～29
|
16
|
0.1
|
0.7
|
1.4
|
43
|
|
M32
|
TLYBFC-EXd-M32-25h
|
11.1～19.9
|
18.7～25
|
16
|
0.1
|
0.7
|
1.4
|
43
|
|
TLYBFC-EXd-M32-35h
|
17～21
|
22.9～35
|
16
|
0.1
|
0.7
|
1.4
|
50
|
|
M40
|
TLYBFC-EXd-M40-30h
|
17～26.2
|
22.9～30
|
16
|
0.1
|
0.7
|
1.6/2.0
|
50
|
|
TLYBFC-EXd-M40-42h
|
22～28
|
26～42
|
16
|
0.1
|
0.8
|
1.4
|
60
|
|
M50
|
TLYBFC-EXd-M50-35h
|
22～32.1
|
26～35
|
17
|
0.2
|
0.8
|
2.5
|
60
|
|
TLYBFC-EXd-M50-48h
|
29.5～39
|
35.5～48
|
17
|
0.2
|
0.63
|
1.4
|
65
|
|
M63
|
TLYBFC-EXd-M63-45h
|
29.5～38.1
|
35.5～45
|
17
|
0.2
|
0.63
|
2.0/2.5
|
65
|
|
TLYBFC-EXd-M63-45h
|
40.1～51
|
45.6～62
|
17
|
0.2
|
0.63
|
1.5
|
80
|
|
M75
|
TLYBFC-EXd-M75-55h
|
47.2～50
|
45.6～55
|
19
|
0.3
|
0.63
|
2.5
|
80
|
|
TLYBFC-EXd-M75-74h
|
52.8～63
|
57～74
|
19
|
0.3
|
0.81
|
1.5
|
92
|
|
M100
|
TLYBFC-EXd-M100-72h
|
52.8～61.9
|
57～72.1
|
19
|
0.3
|
0.81
|
2.5
|
92
|
|
TLYBFC-EXd-M100-79h
|
59.1～67.9
|
60.4～79
|
19
|
0.3
|
0.81
|
2.5/3.15
|
92
|
|
TLYBFC-EXd-M100-93h
|
70～86
|
76～93
|
19
|
0.3
|
0.94
|
1.6
|
117
|
|
M125
|
TLYBFC-EXd-M125-93h
|
70～86
|
76～93
|
19
|
0.3
|
0.936
|
1.6
|
117
|
|
黄铜铠装防爆填料函-II型隔爆(英制牙)
|
|
螺牙规格
|
订货号
|
电缆外径密封范围
|
螺纹长度
|
钢带大厚度
|
网带大厚度
|
大直径B（mm）Max
|
|
英制
|
A(mm)
|
B(mm)
|
L(mm)
|
min
|
max
|
02(mm)Max
|
|
G1/2
|
TLYBFC-EXd-G1/2-13h
|
3.1～8.6
|
6.1～13.4
|
12
|
0.1
|
0.4
|
0.85
|
24
|
|
TLYBFC-EXd-G1/2-17h
|
6～12
|
9.5～17
|
12
|
0.1
|
0.4
|
0.9
|
30
|
|
G3/4
|
TLYBFC-EXd-G3/4-16h
|
6.1～11.6
|
9.5～15.9
|
12
|
0.1
|
0.4
|
0.9
|
30
|
|
TLYBFC-EXd-G3/4-29h
|
11.1～14
|
18.7～29
|
16
|
0.1
|
0.7
|
1.4
|
43
|
|
G 1"
|
TLYBFC-EXd-G1-25h
|
11.1～19.9
|
18.7～25
|
16
|
0.1
|
0.7
|
1.4
|
43
|
|
TLYBFC-EXd-G1-35h
|
17～21
|
22.9～35
|
16
|
0.1
|
0.7
|
1.4
|
50
|
|
G1 1/4
|
TLYBFC-EXd-G1-1/4-30h
|
17～26.2
|
22.9～30
|
16
|
0.1
|
0.7
|
1.6/2.0
|
50
|
|
TLYBFC-EXd-G1-1/4-42h
|
22～28
|
26～42
|
16
|
0.1
|
0.8
|
1.4
|
60
|
|
G1 1/2
|
TLYBFC-EXd-G1-1/2-35h
|
22～32.1
|
26～35
|
17
|
0.2
|
0.8
|
2.5
|
60
|
|
TLYBFC-EXd-G1-1/2-48h
|
29.5～39
|
35.5～48
|
17
|
0.2
|
0.63
|
1.4
|
65
|
|
G 2"
|
TLYBFC-EXd-G2-45h
|
29.5～38.1
|
35.5～45
|
17
|
0.2
|
0.63
|
2.0/2.5
|
65
|
|
TLYBFC-EXd-G2-62h
|
40.1～51
|
45.6～62
|
17
|
0.2
|
0.63
|
1.5
|
80
|
|
G2 1/2
|
TLYBFC-EXd-G2-1/2-55h
|
47.2～50
|
45.6～55
|
19
|
0.3
|
0.63
|
2.5
|
80
|
|
TLYBFC-EXd-G2-1/2-74h
|
52.8～63
|
57～74
|
19
|
0.3
|
0.81
|
1.5
|
92
|
|
G 3"
|
TLYBFC-EXd-G3-72h
|
52.8～61.9
|
57～72.1
|
19
|
0.3
|
0.81
|
2.5
|
92
|
|
TLYBFC-EXd-G3-79h
|
59.167.9
|
60.478.5
|
19
|
0.3
|
0.81
|
2.5/3.15
|
92
|
|
TLYBFC-EXd-G3-93h
|
70～86
|
76～93
|
19
|
0.3
|
0.94
|
1.6
|
117
|
|
G 4"
|
TLYBFC-EXd-G4-93h
|
70～86
|
76～93
|
19
|
0.3
|
0.936
|
1.6
|
117
|
|
黄铜铠装防爆填料函-II型隔爆(美制牙)
|
|
螺牙规格
|
订货号
|
电缆外径密封范围
|
螺纹长度
|
钢带大厚度
|
网带大厚度
|
大直径B（mm）Max
|
|
英制
|
A(mm)
|
B(mm)
|
L(mm)
|
min
|
max
|
02(mm)Max
|
|
NPT1/2
|
TLYBFC-EXd-NPT1/2-13h
|
3.1～8.6
|
6.1～13.4
|
12
|
0.1
|
0.4
|
0.85
|
24
|
|
TLYBFC-EXd-NPT1/2-17h
|
6～12
|
9.5～17
|
12
|
0.1
|
0.4
|
0.9
|
30
|
|
NPT3/4
|
TLYBFC-EXd-NPT3/4-16h
|
6.1～11.6
|
9.5～15.9
|
12
|
0.1
|
0.4
|
0.9
|
30
|
|
TLYBFC-EXd-NPT3/4-29h
|
11.1～14
|
18.7～29
|
16
|
0.1
|
0.7
|
1.4
|
43
|
|
NPT 1"
|
TLYBFC-EXd-NPT1-25h
|
11.1～19.9
|
18.7～25
|
16
|
0.1
|
0.7
|
1.4
|
43
|
|
TLYBFC-EXd-NPT1-35h
|
17～21
|
22.9～35
|
16
|
0.1
|
0.7
|
1.4
|
50
|
|
NPT1 1/4
|
TLYBFZ-EXd-NPT1-1/4-30h
|
17～26.2
|
22.9～30
|
16
|
0.1
|
0.7
|
1.6/2.0
|
50
|
|
TLYBFC-EXd-NPT1-1/4-42h
|
22～28
|
26～42
|
16
|
0.1
|
0.8
|
1.4
|
60
|
|
NPT1 1/2
|
TLYBFC-EXd-NPT1-1/2-35h
|
22～32.1
|
26～35
|
17
|
0.2
|
0.8
|
2.5
|
60
|
|
TLYBFC-EXd-NPT1-1/2-48h
|
29.5～39
|
35.5～48
|
17
|
0.2
|
0.63
|
1.4
|
65
|
|
NPT 2"
|
TLYBFC-EXd-NPT2-45h
|
29.5～38.1
|
35.5～45
|
17
|
0.2
|
0.63
|
2.0/2.5
|
65
|
|
TLYBFC-EXd-NPT2-45h
|
40.1～51
|
45.6～62
|
17
|
0.2
|
0.63
|
1.5
|
80
|
|
NPT2 1/2
|
TLYBFC-EXd-NPT2-1/2-55h
|
47.2～50
|
45.6～55
|
19
|
0.3
|
0.63
|
2.5
|
80
|
|
TLYBFC-EXd-NPT2-1/2-74h
|
52.8～63
|
57～74
|
19
|
0.3
|
0.81
|
1.5
|
92
|
|
NPT 3"
|
TLYBFC-EXd-NPT3-72h
|
52.8～61.9
|
57～72.1
|
19
|
0.3
|
0.81
|
2.5
|
92
|
|
TLYBFC-EXd-NPT3-79h
|
59.167.9
|
60.478.5
|
19
|
0.3
|
0.81
|
2.5/3.15
|
92
|
|
TLYBFC-EXd-NPT3-93h
|
70～86
|
76～93
|
19
|
0.3
|
0.94
|
1.6
|
117
|
|
NPT 4"
|
TLYBFC-EXd-NPT4-93h
|
70～86
|
76～93
|
19
|
0.3
|
0.936
|
1.6
|
117
|
