螺牙规格：公制牙（M），PG牙，NPT牙（可定制）

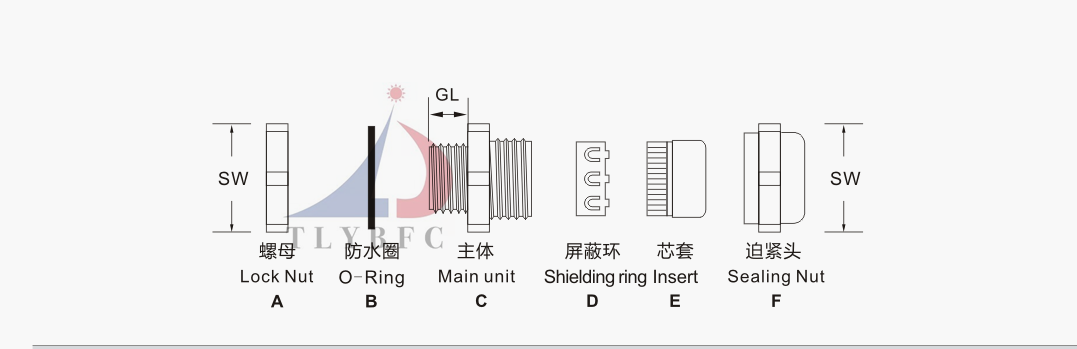

产品材质：F迫紧头，C主体，C1接触片，A螺母用铜镀镍制成，夹紧爪部分用UL认可之尼龙PA66制成（防火UL94V-2）,夹紧圈，O型圈部分采用丁晴橡胶制成。
防护等级：IP68-10
工作范围：-40度至100度，短时可达120度

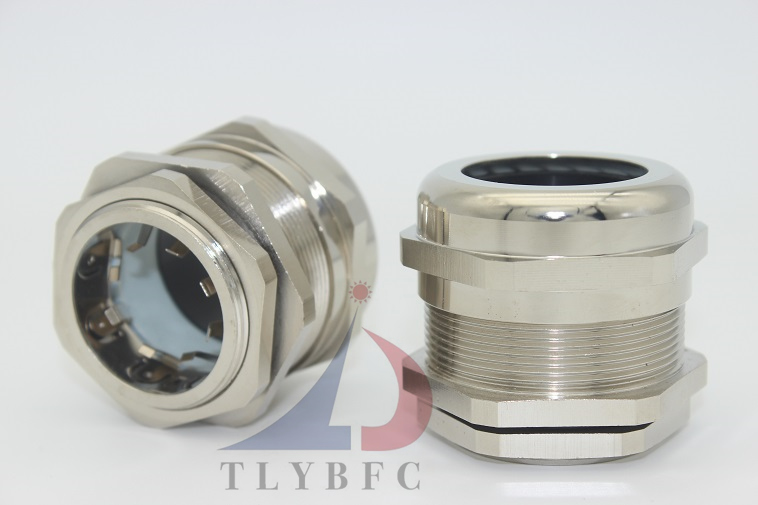

产品特性：特殊设计将金属电缆固定头作为一个端体，当隔离线电缆进入固定头时，可利用固定头内所附加的铜质接触片来与电缆线内的金属隔离编制网作接触，进而引导干扰电磁波到接地线上。使得电磁波干扰得以疏散，本款铜质电缆固定头的尺寸能充分地应用到所有屏蔽出线领域。
|
产品型号
|
螺纹规格
|
电缆范围
|
螺纹外径
|
螺纹长度
|
高度
|
扳手尺寸
|
穿线方式
|
包装数量
|
|
TLYBFC-EMV.SC-M12
|
M12X1.5
|
3-6.5
|
12
|
6
|
19
|
14
|
A/B
|
75
|
|
TLYBFC-EMV.SC1-M12
|
M12X1.5
|
4-8
|
12
|
6
|
22
|
20
|
A
|
32
|
|
TLYBFC-EMV.SC-M16
|
M16X1.5
|
4-8
|
16
|
7
|
21
|
17/18
|
A/B
|
75
|
|
TLYBFC-EMV.SC1-M16
|
M16X1.5
|
5-10
|
16
|
7
|
24
|
22
|
A
|
32
|
|
TLYBFC-EMV.SC-M20
|
M20X1.5
|
7-12
|
20
|
7
|
23.5
|
22
|
A/B
|
32
|
|
TLYBFC-EMV.SC1-M20
|
M20X1.5
|
9-14
|
20
|
7
|
27
|
26
|
A
|
32
|
|
TLYBFC-EMV.SC-M25
|
M25X1.5
|
11-16
|
25
|
7
|
24.5
|
28
|
A/B
|
18
|
|
TLYBFC-EMV.SC1-M25
|
M25X1.5
|
13-18
|
25
|
7
|
28.5
|
30
|
A
|
18
|
|
TLYBFC-EMV.SC-M32
|
M32X1.5
|
15-21
|
32
|
8
|
28
|
36
|
A/B
|
8
|
|
TLYBFC-EMV.SC1-M32
|
M32X1.5
|
17-24
|
32
|
8
|
33
|
38
|
A
|
8
|
|
TLYBFC-EMV.SC-M40
|
M40X1.5
|
21-30
|
40
|
9
|
38
|
45
|
A/B
|
8
|
|
TLYBFC-EMV.SC1-M40
|
M40X1.5
|
22-32
|
40
|
9
|
34
|
50
|
A
|
4
|
|
TLYBFC-EMV.SC-M48
|
M48X2.0
|
22-32
|
48
|
9
|
38
|
50
|
A
|
4
|
|
TLYBFC-EMV.SC-M50
|
M50X1.5
|
30-38
|
50
|
9
|
40
|
55/58
|
A/B
|
2
|
|
TLYBFC-EMV.SC1-M50
|
M50X1.5
|
30-40
|
50
|
9
|
37
|
58
|
A
|
2
|
|
TLYBFC-EMV.SC-M63
|
M63X1.5
|
37-44
|
63
|
10
|
41.5
|
65/70
|
A/B
|
2
|
|
TLYBFC-EMV.SC1-M3
|
M63X1.5
|
38-53
|
63
|
10
|
48
|
75
|
A
|
2
|
PG德制牙
|
产品型号
|
螺纹规格
|
电缆范围
|
螺纹外径
|
螺纹长度
|
高度
|
扳手尺寸
|
穿线方式
|
包装数量
|
|
TLYBFC-EMV.SC-PG07
|
PG07
|
3-6.5
|
12.5
|
6
|
19
|
14
|
A/B
|
75
|
|
TLYBFC-EMV.SC1-PG07
|
PG07
|
4-8
|
12.5
|
6
|
22
|
20
|
A
|
32
|
|
TLYBFC-EMV.SC-PG09
|
PG09
|
4-8
|
15.2
|
10
|
21
|
17
|
A/B
|
75
|
|
TLYBFC-EMV.SC1-PG09
|
PG09
|
5-10
|
15.2
|
10
|
24
|
22
|
A
|
32
|
|
TLYBFC-EMV.SC-PG11
|
PG11
|
4-8
|
18.6
|
10
|
21
|
17/20
|
A/B
|
32
|
|
TLYBFC-EMV.SC1-PG11
|
PG11
|
5-10
|
18.6
|
10
|
24
|
22
|
A
|
32
|
|
TLYBFC-EMV.SC-PG13.5
|
PG13.5
|
7-12
|
20.4
|
10
|
23.5
|
22
|
A/B
|
32
|
|
TLYBFC-EMV.SC1-PG13.5
|
PG13.5
|
9-14
|
20.4
|
10
|
27
|
26
|
A
|
32
|
|
TLYBFC-EMV.SC-PG16
|
PG16
|
7-12
|
22.5
|
10
|
23.5
|
22/24
|
A/B
|
32
|
|
TLYBFC-EMV.SC1-PG16
|
PG16
|
9-14
|
22.5
|
10
|
27
|
26
|
A
|
32
|
|
TLYBFC-EMV.SC-PG21
|
PG21
|
11-16
|
28.3
|
10
|
24.5
|
28/30
|
A/B
|
18
|
|
TLYBFC-EMV.SC1-PG21
|
PG21
|
13-18
|
28.3
|
10
|
28.5
|
30
|
A
|
18
|
|
TLYBFC-EMV.SC-PG29
|
PG29
|
15-21
|
37
|
8
|
28
|
36/40
|
A/B
|
8
|
|
TLYBFC-EMV.SC1-PG29
|
PG29
|
17-24
|
37
|
8
|
33
|
38/40
|
A
|
8
|
|
TLYBFC-EMV.SC-PG36
|
PG36
|
21-30
|
47
|
9
|
38
|
45/50
|
A/B
|
4
|
|
TLYBFC-EMV.SC1-PG36
|
PG36
|
22-32
|
47
|
9
|
34
|
50
|
A
|
4
|
|
TLYBFC-EMV.SC-PG42
|
PG42
|
30-38
|
54
|
9
|
40
|
58
|
A/B
|
2
|
|
TLYBFC-EMV.SC1-PG42
|
PG42
|
30-40
|
54
|
9
|
37
|
58
|
A
|
2
|
|
TLYBFC-EMV.SC-PG48
|
PG48
|
37-44
|
59.3
|
10
|
41.5
|
65
|
A/B
|
2
|
|
TLYBFC-EMV.SC1-PG48
|
PG48
|
38-53
|
59.3
|
10
|
48
|
75
|
A
|
2
|
