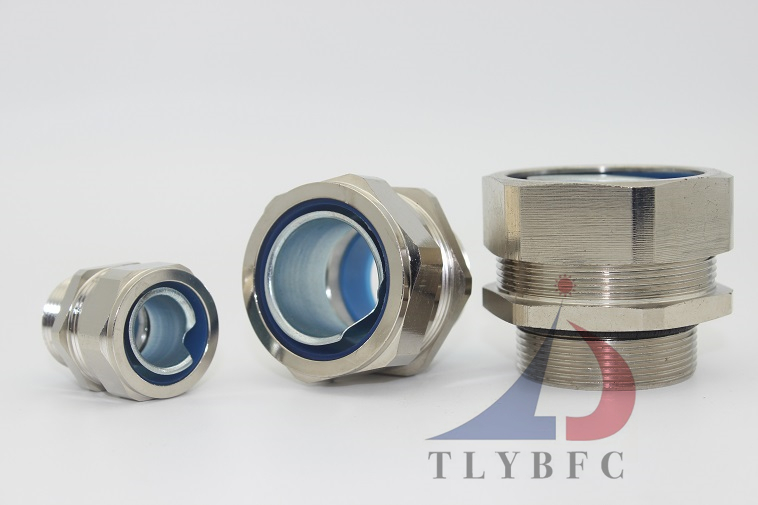

产品材质： A.C.D F部位采用304不锈钢制成、B.E部分采用丁腈橡胶制成。
螺纹规格： 公制 (M)、德制 (PG)、英制 (G)
工作温度： -40℃至+100℃,短时可达+120℃。
防护等级： IP65
产品特性：304不锈钢制成、外型美观、结构紧密、强度高比一般金属软管接头高。
软管护套设计与软管相扣接紧之设计、装配省时便利，抗拉力强。
可防水、防尘、抗盐、耐酸碱、耐腐蚀、酒精、油、脂。
除以下标准规格外，可按要求任意变动螺纹大小及标准。
结构
六角螺母、本体、密封圈、牙圈、防水圈、螺母
特性
高度防水防尘效果
具有较强连接能力
很好的线缆保护能力
可选接地功能
良好的防腐蚀能力
1.热镀锌处理 ： 耐腐蚀 抗氧化性好 ，偏差小
2.牙路工整 ： 车床精加工，螺纹无毛刺
3.安装便捷： 国标规格 快速安装 无需工具
4. 防护性能：防水防尘性好 密封度高
5.非标定制：多道数控机床生产线 专业选型 可接受非标定制
|
规格型号
|
适配软管尺寸
|
螺纹
|
螺纹长度
|
螺纹外径
|
包装
|
|
Spec.
|
Conduit size
|
Thread
|
Thread length
|
Thread diameter
|
Pcs.
|
|
公制螺纹
|
公称内径
|
英制尺寸
|
|
单位：毫米mm
|
单位：毫米mm
|
|
|
TLYBFC-FB.DPJ.6-M14
|
6
|
G3/16"
|
M14*1.5
|
8
|
14
|
50
|
|
TLYBFC-FB.DPJ.8-M16
|
8
|
G1/4"
|
M16*1.5
|
8
|
16
|
50
|
|
TLYBFC-FB.DPJ.10-M16
|
10
|
G5/16"
|
M16*1.5
|
8
|
16
|
50
|
|
TLYBFC-FB.DPJ.13-M20
|
13
|
G3/8"
|
M20*1.5
|
8
|
20
|
50
|
|
TLYBFC-FB.DPJ.16-M20
|
16
|
G1/2"
|
M20*1.5
|
8
|
20
|
50
|
|
TLYBFC-FB.DPJ.20-M25
|
20
|
G3/4"
|
M25*1.5
|
11
|
25
|
50
|
|
TLYBFC-FB.DPJ.25-M32
|
25
|
G1"
|
M32*1.5
|
12
|
32
|
50
|
|
TLYBFC-FB.DPJ.32-M40
|
32
|
G1.1/4"
|
M40*1.5
|
15
|
40
|
25
|
|
TLYBFC-FB.DPJ.38-M50
|
38
|
G1.1/2"
|
M50*1.5
|
16
|
50
|
25
|
|
TLYBFC-FB.DPJ.51-M60
|
51
|
G2"
|
M60*2.0
|
18
|
60
|
10
|
|
TLYBFC-FB.DPJ.64-M76
|
64
|
G2.1/2"
|
M76*2.0
|
22
|
76
|
10
|
|
TLYBFC-FB.DPJ.75-M88
|
75
|
G3"
|
M88*2.0
|
22
|
88
|
2
|
|
TLYBFC-FB.DPJ.100-M114
|
100
|
G4"
|
M114*2.0
|
24
|
114
|
2
|
|
TLYBFC-FB.DPJ.125-M140
|
125
|
G5"
|
M140*2.0
|
29
|
140
|
2
|
|
TLYBFC-FB.DPJ.150-M164
|
150
|
G6"
|
M164*2.0
|
29
|
164
|
2
|
|
英制螺纹
|
适配软管尺寸
|
螺纹
|
螺纹长度
|
螺纹外径
|
包装
|
|
Conduit size
|
Thread
|
Thread length
|
Thread diameter
|
Pcs.
|
|
TLYBFC-FB.DPJ.6-G1/4
|
6
|
G3/16"
|
G1/4"
|
8
|
13.2
|
50
|
|
TLYBFC-FB.DPJ.8-G3/8
|
8
|
G1/4"
|
G3/8"
|
8
|
16.5
|
50
|
|
TLYBFC-FB.DPJ.10-G3/8
|
10
|
G5/16"
|
G3/8"
|
8
|
16.5
|
50
|
|
TLYBFC-FB.DPJ.13-G3/8
|
13
|
G3/8"
|
G3/8"
|
8
|
16.5
|
50
|
|
TLYBFC-FB.DPJ.16-G1/2
|
16
|
G1/2"
|
G1/2"
|
11
|
21.3
|
50
|
|
TLYBFC-FB.DPJ.20-G3/4
|
20
|
G3/4"
|
G3/4"
|
14
|
26.6
|
50
|
|
TLYBFC-FB.DPJ.25-G1
|
25
|
G1"
|
G1"
|
15
|
33.4
|
50
|
|
TLYBFC-FB.DPJ.32-G1 1/4
|
32
|
G1.1/4"
|
G1-1/4"
|
15
|
42.1
|
25
|
|
TLYBFC-FB.DPJ.38-G1 1/2
|
38
|
G1.1/2"
|
G1-1/2"
|
16
|
47.8
|
25
|
|
TLYBFC-FB.DPJ.51-G2
|
51
|
G2"
|
G2"
|
18
|
59.6
|
10
|
|
TLYBFC-FB.DPJ.64-G2 1/2
|
64
|
G2.1/2"
|
G2-1/2"
|
22
|
75.1
|
10
|
|
TLYBFC-RB.DPJ.75-G3
|
75
|
G3"
|
G3"
|
22
|
87.8
|
2
|
|
TLYBFC-FB.DPJ.100-G4
|
100
|
G4"
|
G4"
|
24
|
113
|
2
|
|
TLYBFC-FB.DPJ.125-G5
|
125
|
G5"
|
G5"
|
29
|
138.4
|
2
|
|
TLYBFC-FB.DPJ.150-G6
|
150
|
G6"
|
G6"
|
29
|
163.8
|
2
|
|
德制螺纹
|
适配软管尺寸
|
螺纹
|
螺纹长度
|
螺纹外径
|
包装
|
|
Conduit size
|
Thread
|
Thread length
|
Thread diameter
|
Pcs.
|
|
公称内径
|
英制尺寸
|
|
单位：毫米mm
|
单位：毫米mm
|
|
|
TLYBFC-FB.DPJ.6-PG7
|
6
|
G3/16"
|
PG7
|
8
|
12.5
|
50
|
|
TLYBFC-FB.DPJ.8-PG9
|
8
|
G1/4"
|
PG9
|
8
|
15.2
|
50
|
|
TLYBFC-FB.DPJ.10-PG9
|
10
|
G5/16"
|
PG9
|
8
|
15.2
|
50
|
|
TLYBFC-FB.DPJ.13-PG11
|
13
|
G3/8"
|
PG11
|
8
|
18.6
|
50
|
|
TLYBFC-FB.DPJ.16-PG13.5
|
16
|
G1/2"
|
PG13.5
|
11
|
20.4
|
50
|
|
TLYBFC-FB.DPJ.20-PG21
|
20
|
G3/4"
|
PG21
|
14
|
28.3
|
50
|
|
TLYBFC-FB.DPJ.25-PG29
|
25
|
G1"
|
PG29
|
15
|
37
|
50
|
|
TLYBFC-FB.DPJ.32-PG29
|
32
|
G1.1/4"
|
PG29
|
15
|
37
|
25
|
|
TLYBFC-FB.DPJ.38-PG36
|
38
|
G1.1/2"
|
PG36
|
16
|
47
|
25
|
|
TLYBFC-FB.DPJ.51-PG48
|
51
|
G2"
|
PG48
|
18
|
59.3
|
10
|
|
美制螺纹
|
适配软管尺寸
|
螺纹
|
螺纹长度
|
螺纹外径
|
包装
|
|
Conduit size
|
Thread
|
Thread length
|
Thread diameter
|
Pcs.
|
|
TLYBFC-FB.DPJ.6-NPT1/4
|
6
|
G3/16"
|
NPT1/4
|
8
|
13.2
|
50
|
|
TLYBFC-FB.DPJ.8-NPT3/8
|
8
|
G1/4"
|
NPT3/8
|
8
|
16.5
|
50
|
|
TLYBFC-FB.DPJ.10-NPT3/8
|
10
|
G5/16"
|
NPT3/8
|
8
|
16.5
|
50
|
|
TLYBFC-FB.DPJ.13-NPT3/8
|
13
|
G3/8"
|
NPT3/8
|
8
|
16.5
|
50
|
|
TLYBFC-FB.DPJ.16-NPT1/2
|
16
|
G1/2"
|
NPT1/2
|
11
|
21.3
|
50
|
|
TLYBFC-FB.DPJ.20-NPT3/4
|
20
|
G3/4"
|
NPT3/4
|
14
|
26.6
|
50
|
|
TLYBFC-FB.DPJ.25-NPT1
|
25
|
G1"
|
NPT1
|
15
|
33.4
|
50
|
|
TLYBFC-FB.DPJ.32-NPT1 1/4
|
32
|
G1.1/4"
|
NPT1-1/4
|
15
|
42.1
|
25
|
|
TLYBFC-FB.DPJ.38-NPT1 1/2
|
38
|
G1.1/2"
|
NPT1-1/2
|
16
|
47.8
|
25
|
|
TLYBFC-FB.DPJ.51-NPT2
|
51
|
G2"
|
NPT2
|
18
|
59.6
|
10
|
|
TLYBFC-FB.DPJ.64-NPT2 1/2
|
64
|
G2.1/2"
|
NPT2-1/2
|
22
|
75.1
|
10
|
|
TLYBFC-FB.DPJ.75-NPT3
|
75
|
G3"
|
NPT3
|
22
|
87.8
|
2
|
|
TLYBFC-FB.DPJ.100-NPT4
|
100
|
G4"
|
NPT4
|
24
|
113
|
2
|
|
TLYBFC-FB.DPJ.125-NPT5
|
125
|
G5"
|
NPT5
|
29
|
138.4
|
2
|
|
TLYBFC-FB.DPJ.150-NPT6
|
150
|
G6"
|
NPT6
|
29
|
163.8
|
2
|
|
螺纹可以按客户要求特殊定制，接受非标定制，支持各种螺纹开孔尺寸
|
