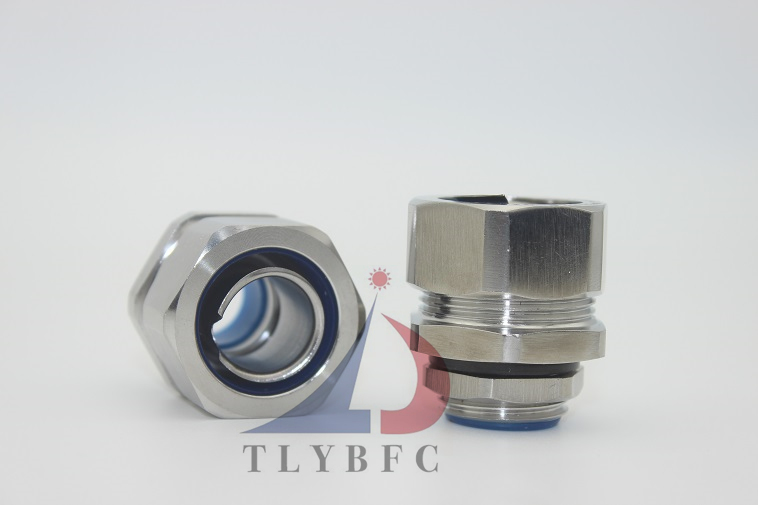

产品材质： A.C.D.F部位采用304不锈钢制成，B.E部分采用丁腈橡胶制成。
螺纹规格： 公制 (M)、德制 (PG)、英制 (G)
工作温度： -40℃至+100℃，短时可达+120℃。
产品认证： RoHS2.0认证
产品特性：304不锈钢制成、外型美观、结构紧密、强度高比一般金属软管接头高。
软管护套设计与软管相扣接紧之设计、装配省时便利，抗拉力强。
可防水、防尘、抗盐、耐酸碱、耐腐蚀、酒精、油、脂。
除以下标准规格外，可按要求任意变动螺纹大小及标准。
|
螺牙规格
|
螺纹外径C1(mm)
|
最小通径 （mm)
|
螺纹长度C2(mm)
|
总长度(mm)
|
扳手径
|
软管尺寸
|
|
英寸
|
毫米
|
|
TLYBFC-DSKH-M16X1.5
|
16
|
13.8
|
10
|
31
|
25.7
|
3/8
|
12
|
|
TLYBFC-DSKH-M20X1.5
|
20
|
14.8
|
12
|
38.1
|
28.6
|
1/2
|
16
|
|
TLYBFC-DSKH-M25X1.5
|
25
|
18.8
|
13.5
|
42.9
|
34.9
|
3/4
|
20
|
|
TLYBFC-DSKH-M32X1.5
|
32
|
25.8
|
17.5
|
46
|
42.4
|
1
|
25
|
|
TLYBFC-DSKH-M40X1.5
|
40
|
33.4
|
18
|
48.5
|
53
|
1 1/4
|
32
|
|
TLYBFC-DSKH-M50X1.5
|
50
|
39.3
|
23
|
58.5
|
59
|
1 1/2
|
38
|
|
TLYBFC-DSKH-M63X1.5
|
63
|
49.2
|
28
|
66.8
|
74
|
2
|
51
|
|
TLYBFC-DSKH-PG11
|
18.6
|
13.8
|
10
|
31
|
25.7
|
3/8
|
12
|
|
TLYBFC-DSKH-PG16
|
22.5
|
14.8
|
12
|
38.1
|
28.6
|
1/2
|
16
|
|
TLYBFC-DSKH-PG21
|
28.3
|
18.8
|
13.5
|
42.9
|
34.9
|
3/4
|
20
|
|
TLYBFC-DSKH-PG29
|
37
|
25.8
|
17.5
|
46
|
42.4
|
1
|
25
|
|
TLYBFC-DSKH-PG36
|
47
|
33.4
|
18
|
48.5
|
53
|
1 1/4
|
32
|
|
TLYBFC-DSKH-PG42
|
54
|
39.3
|
23
|
58.5
|
59
|
1 1/2
|
38
|
|
TLYBFC-DSKH-PG48
|
59.3
|
49.2
|
28
|
66.8
|
74
|
2
|
51
|
|
TLYBFC-DSKH-G(PF)3/8"
|
16.6
|
13.8
|
10
|
31
|
25.7
|
3/8
|
12
|
|
TLYBFC-DSKH-G(PF)1/2"
|
20.955
|
14.8
|
12
|
38.1
|
28.6
|
1/2
|
16
|
|
TLYBFC-DSKH-G(PF)3/4"
|
26.441
|
18.8
|
13.5
|
42.9
|
34.9
|
3/4
|
20
|
|
TLYBFC-DSKH-G(PF) 1"
|
33.2
|
25.8
|
17.5
|
46
|
42.4
|
1
|
25
|
|
TLYBFC-DSKH-G(PF)1 1/4"
|
41.9
|
33.4
|
18
|
48.5
|
53
|
1 1/4
|
32
|
|
TLYBFC-DSKH-G(PF) 1 1/2"
|
48
|
39.3
|
23
|
58.5
|
59
|
1 1/2
|
38
|
|
TLYBFC-DSKH-G(PF) 2"
|
60
|
49.2
|
28
|
66.8
|
74
|
2
|
51
|
|
TLYBFC-DSKH-NPT3/8"
|
16.6
|
13.8
|
10
|
31
|
25.7
|
3/8
|
12
|
|
TLYBFC-DSKH-NPT1/2"
|
20.955
|
14.8
|
12
|
38.1
|
28.6
|
1/2
|
16
|
|
TLYBFC-DSKH-NPT3/4"
|
26.441
|
18.8
|
13.5
|
42.9
|
34.9
|
3/4
|
20
|
|
TLYBFC-DSKH-NPT1"
|
33.2
|
25.8
|
17.5
|
46
|
42.4
|
1
|
25
|
|
TLYBFC-DSKH-NPT 1 1/4"
|
41.9
|
33.4
|
18
|
48.5
|
53
|
1 1/4
|
32
|
|
TLYBFC-DSKH-NPT1 1/2"
|
48
|
39.3
|
23
|
58.5
|
59
|
1 1/2
|
38
|
|
TLYBFC-DSKH-NPT2"
|
60
|
49.2
|
28
|
66.8
|
74
|
2
|
51
|
