螺牙规格 ：英制G(PF)螺牙，符合ISO与JIS平行螺纹管牙规范。（Parallel Threads for Pipes-ISO 228-1）。

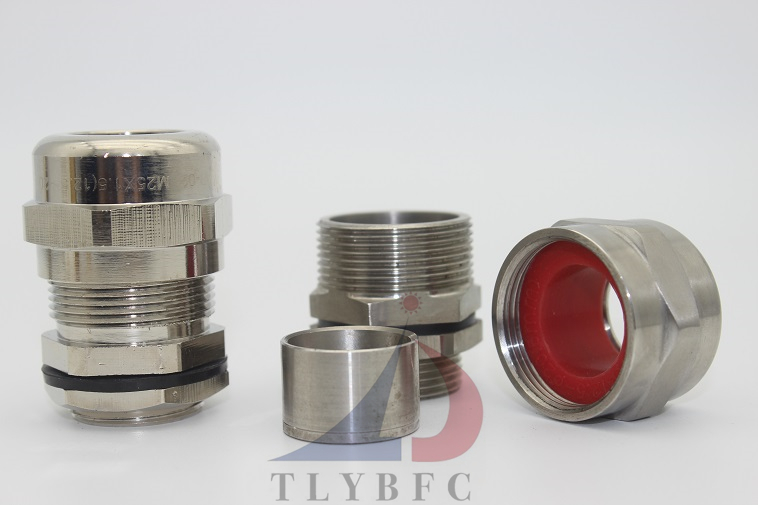

产品说明 ：采用黄铜或不锈钢材质精制而成，内置隔爆装置，具有防爆功能，另有特殊夹紧爪与夹紧圈之设计，夹紧电缆范围大，抗拉力特强，可防水、防尘、抗盐、耐弱酸、酒精、油、油脂及一般溶剂，电缆锁紧采用填料密封，防护性能
好.具有快捷安装，防护性能好，防爆等特点。。
防护等级 ：在规定的卡口范围内，并使用密封圈旋紧迫紧头，达到IP65-10Bar
工作温度 ：-40℃~＋100℃短时可达＋120℃
产品材質 ：黄铜或304不锈钢搭配密封橡胶制成。
铠装电缆 ：适用于夹紧和固定各种类型的钢芯.钢丝编织或带状铠装电缆。
适用场所 ：1区.2区危险场所及IIA.IIB.IIC类爆炸性气体环境。
安装步骤：
1、剥去电缆外护层及屏蔽层，沿着外护层圆周的方向剪开约15mm；
2、将电缆穿出电缆防水接头，去掉外护层，将屏蔽层层压在屏蔽锥面上；
3、屏蔽环压紧屏蔽层；
4、放入接头体，旋紧螺帽，安装完毕。
|
产品型号
|
螺纹规格
|
电缆范围进线
|
螺纹长度
|
包装数量
|
|
TLYBFC-QXKZ010-M16
|
M16X1.5
|
5-10
|
9
|
80
|
|
TLYBFC-QXKZ10-M20
|
M20X1.5
|
5-10
|
10
|
50
|
|
TLYBFC-QXKZ14-M20
|
M20X1.5
|
8-14
|
10
|
50
|
|
TLYBFC-QXKZ16-M20
|
M20X1.5
|
10-16
|
10
|
50
|
|
TLYBFC-QXKZ18-M20
|
M20X1.5
|
13-18
|
10
|
50
|
|
TLYBFC-QXKZ21-M20
|
M20X1.5
|
15-21
|
10
|
50
|
|
TLYBFC-QXKZ14-M25
|
M25X1.5
|
8-14
|
12
|
50
|
|
TLYBFC-QXKZ16-M25
|
M25X1.5
|
10-16
|
12
|
25
|
|
TLYBFC-QXKZ18-M25
|
M25X1.5
|
13-18
|
12
|
25
|
|
TLYBFC-QXKZ21-M25
|
M25X1.5
|
15-21
|
12
|
25
|
|
TLYBFC-QXKZ24-M25
|
M25X1.5
|
17-24
|
12
|
25
|
|
TLYBFC-QXKZ25-M32
|
M32X1.5
|
18-25
|
12
|
20
|
|
TLYBFC-XQKZ28-M32
|
M32X1.5
|
20-28
|
12
|
20
|
|
TLYBFC-QXKZ32-M32
|
M32X1.5
|
23-32
|
12
|
20
|
|
TLYBFC-QXKZ35-M40
|
M40X1.5
|
26-35
|
15
|
15
|
|
TLYBFC-QXKZ38-M40
|
M40X1.5
|
31-38
|
15
|
15
|
|
TLYBFC-QXKZ41-M50
|
M50X1.5
|
34-41
|
15
|
10
|
|
TLYBFC-QXKZ44-M50
|
M50X1.5
|
37-44
|
15
|
10
|
TLYBFC-QXKZ50-M63
|
M63X.15
|
40-50
|
18
|
5
|
TLYBFC-QXKZ55-M63
|
M63X1.5
|
43-55
|
18
|
5
|
TLYBFC-QXKZ63-M75
|
M75X2.0
|
50-63
|
18
|
5
|
TLYBFC-QXKZ68-M75
|
M75X2.0
|
54-68
|
18
|
1
|
TLYBFC-QXKZ90-M90
|
M90X2.0
|
65-78
|
18
|
1
|
TLYBFC-QXKZ98-M100
|
M100X2.0
|
78-98
|
18
|
1
|
|
产品型号
|
螺纹规格
|
电缆范围进线
|
螺纹长度
|
包装数量
|
|
TLYBFC-QXKZ10-NPT3/8
|
NPT3/8
|
5-10
|
9
|
80
|
|
TLYBFC-QXKZ10-NPT1/2
|
NPT1/2
|
5-10
|
10
|
50
|
|
TLYBFC-QXKZ14-NPT1/2
|
NPT1/2
|
8-14
|
10
|
50
|
|
TLYBFC-QXKZ16-NPT1/2
|
NPT1/2
|
10-16
|
10
|
50
|
|
TLYBFC-QXKZ18-NPT1/2
|
NPT1/2
|
13-18
|
10
|
50
|
|
TLYBFC-QXKZ21-NPT1/2
|
NPT1/2
|
15-21
|
10
|
50
|
|
TLYBFC-QXKZ14-NPT3/4
|
NPT3/4
|
8-14
|
12
|
25
|
|
TLYBFC-QXKZ16-NPT3/4
|
NPT3/4
|
10-16
|
12
|
25
|
|
TLYBFC-QXKZ18-NPT3/4
|
NPT3/4
|
13-18
|
12
|
25
|
|
TLYBFC-QXKZ21-NPT3/4
|
NPT3/4
|
15-21
|
12
|
25
|
|
TLYBFC-QXKZ24-NPT3/4
|
NPT3/4
|
17-24
|
12
|
25
|
|
TLYBFC-QXKZ25-NPT1
|
NPT1
|
18-25
|
12
|
20
|
|
TLYBFC-QXKZ28-NPT1
|
NPT1
|
20-28
|
12
|
20
|
|
TLYBFC-QXKZ32-NPT1
|
NPT1
|
23-32
|
12
|
20
|
|
TLYBFC-QXKZ35-NPT1 1/4
|
NPT1 1/4
|
26-35
|
15
|
15
|
|
TLYBFC-QXKZ38-NPT1 1/4
|
NPT1 1/4
|
31-38
|
15
|
15
|
|
TLYBFC-QXKZ41-NPT1 1/2
|
NPT1 1/2
|
34-41
|
15
|
10
|
|
TLYBFC-QXKZ44-NPT1 1/2
|
NPT1 1/2
|
37-44
|
15
|
10
|
|
TLYBFC-QXKZ50-NPT2
|
NPT2
|
40-50
|
18
|
5
|
|
TLYBFC-QXKZ55-NPT2
|
NPT2
|
43-55
|
18
|
5
|
|
TLYBFC-QXKZ63-NPT2 1/2
|
NPT2 1/2
|
50-63
|
18
|
2
|
TLYBFC-QHXKZ68-NPT2 1/2
|
NPT2 1/2
|
54-68
|
18
|
2
|
TLYBFC-QXKZ78-NPT3
|
NPT3
|
65-78
|
18
|
1
|
TLYBFC-QXKZ98-NPT4
|
NPT4
|
78-98
|
18
|
1
|
|
产品型号
|
螺纹规格
|
电缆范围进线
|
螺纹长度
|
包装数量
|
|
TLYBFC-QXKZ10-G3/8
|
G3/8
|
5-10
|
9
|
80
|
|
TLYBFC-QXKZ10-G1/2
|
G1/2
|
5-10
|
10
|
50
|
|
TLYBFC-QXKZ14-G1/2
|
G1/2
|
8-14
|
10
|
50
|
|
TLYBFC-QXKZ16-G1/2
|
G1/2
|
10-16
|
10
|
50
|
|
TLYBFC-QXKZ18-G1/2
|
G1/2
|
13-18
|
10
|
50
|
|
TLYBFC-QXKZ21-G1/2
|
G1/2
|
15-21
|
10
|
50
|
|
TLYBFC-QXKZ14-G3/4
|
G3/4
|
8-14
|
12
|
25
|
|
TLYBFC-QXKZ16-G3/4
|
G3/4
|
10-16
|
12
|
25
|
|
TLYBFC-QXKZ18-G3/4
|
G3/4
|
13-18
|
12
|
25
|
|
TLYBFC-QXKZ21-G3/4
|
G3/4
|
15-21
|
12
|
25
|
|
TLYBFC-QXKZ24-G3/4
|
G3/4
|
17-24
|
12
|
25
|
|
TLYBFC-QXKZ25-G1
|
G1
|
18-25
|
12
|
20
|
|
TLYBFC-QXKZ28-G1
|
G1
|
20-28
|
12
|
20
|
|
TLYBFC-QXKZ32-G1
|
G1
|
23-32
|
12
|
20
|
|
TLYBFC-QXKZ35-G1 1/4
|
G1 1/4
|
26-35
|
15
|
15
|
|
TLYBFC-QXKZ38-G1 1/4
|
G1 1/4
|
31-38
|
15
|
15
|
|
TLYBFC-QXKZ41-G1 1/2
|
G1 1/2
|
34-41
|
15
|
10
|
|
TLYBFC-QXKZ44-NPT1 1/2
|
G1 1/2
|
37-44
|
15
|
10
|
|
TLYBFC-QXKZ50-NPT2
|
G2
|
40-50
|
18
|
5
|
|
TLYBFC-QXKZ55-NPT2
|
G2
|
43-55
|
18
|
5
|
|
TLYBFC-QXKZ63-NPT2 1/2
|
G2 1/2
|
50-63
|
18
|
2
|
TLYBFC-QXKZ68-NPT2 1/2
|
G2 1/2
|
54-68
|
18
|
2
|
TLYBFC-QXKZ78-NPT3
|
G3
|
65-78
|
18
|
1
|
TLYBFC-QXKZ98-NPT4
|
G4
|
78-98
|
18
|
1
|
