材料：不锈钢
夹紧件：尼龙塑料（PA）
密封件：丁腈橡胶（NBR）
0-密封圈：丁腈橡胶（NBR）
防护等级：IP68-10巴压力（旋紧部位）
环境温度：-40℃至100℃，短时至120℃

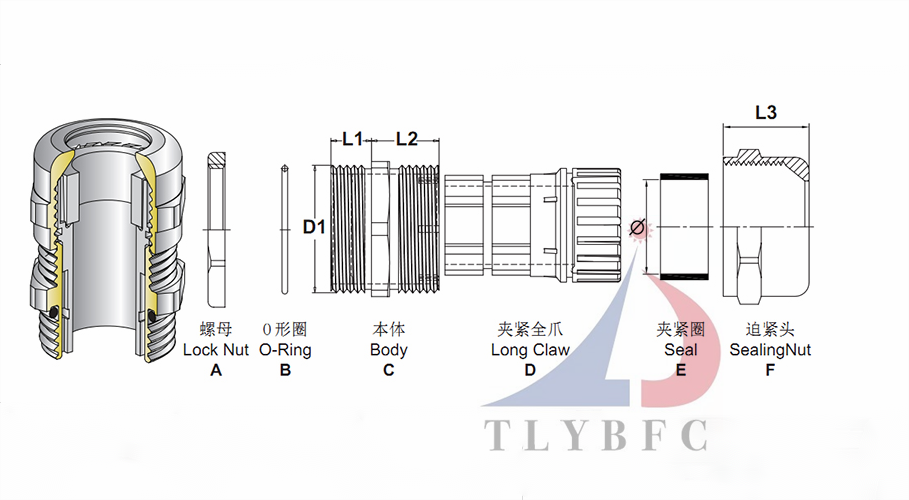

产品特性：特殊夹紧爪与夹紧圈之设计，夹紧电缆范围大，抗拉力特强，可防水、防尘抗盐、耐弱酸、酒精、油、油脂及一般溶剂。
Material：Staninless steel
Claw：Nickel plastic(PA)
Sealing：NBR
0-Sealing ring：NRB
Protection level：IP68-10 bar pressure(fixed installation and with 0-sealing ring)
Ambient temperature： -40℃~100℃,temporary:to120℃
Character: Special design of clamping claw and clamping ring, wide clamping range, high stretching resistance, water proof, dust proof, salt resistant, resistant for weak acid, alcohol, oll, grease and general solvent.
型号
Model number
|
螺纹规格
Thread Dimension
|
接线范围
Clamping range（mm）
|
螺纹外径
AG（mm）
|
螺纹长度
GL
|
高度
H
|
扳手尺寸
Wrench Size（mm）
|
订货号
Article No.
|
包装单位
Packet Units
|
|
TLYBFC-HSMS.NPT3/8.A
|
NPT 3/8"
|
4-8
|
17
|
15
|
21
|
17/19
|
19 00 017 3030 06
|
100
|
|
TLYBFC-HSMS.NPT3/8.B
|
NPT 3/8"
|
2-6
|
17
|
15
|
21
|
17/19
|
19 00 017 3031 06
|
100
|
|
TLYBFC-HSMS.NPT1/2.A
|
NPT 1/2"
|
6-12
|
21.2
|
13
|
24
|
22/24
|
19 00 017 3040 06
|
50
|
|
TLYBFC-HSMS.NPT1/2.B
|
NPT 1/2"
|
5-9
|
21.2
|
13
|
24
|
22/24
|
19 00 017 3041 06
|
50
|
|
TLYBFC-HSMS.NPT3/4.A
|
NPT 3/4"
|
13-18
|
26.5
|
13
|
25
|
30
|
19 00 017 3060 06
|
50
|
|
TLYBFC-HSMS.NPT3/4.B
|
NPT 3/4"
|
9-16
|
26.5
|
13
|
25
|
30
|
19 00 017 3061 06
|
50
|
|
TLYBFC-HSMS.NPT1.A
|
NPT 1"
|
18-25
|
33.2
|
19
|
29
|
41
|
19 00 017 3080 06
|
20
|
|
TLYBFC-HSMS.NPT1.B
|
NPT 1"
|
13-20
|
33.2
|
19
|
29
|
41
|
19 00 017 3081 06
|
20
|
型号
Model number
|
螺纹规格
Thread Dimension
|
接线范围
Clamping range（mm）
|
螺纹外径
AG（mm）
|
螺纹长度
GL
|
高度
H
|
扳手尺寸
Wrench Size（mm）
|
订货号
Article No.
|
包装单位
Packet Units
|
|
TLYBFC-HSMS.G1/4
|
G1/4"
|
3-6.5
|
13.1
|
7
|
19
|
14
|
19 00 017 2020 06
|
100
|
|
TLYBFC-HSMS.G3/8
|
G3/8"
|
4-8
|
16.6
|
8
|
19
|
18
|
19 00 017 2030 06
|
100
|
|
TLYBFC-HSMS.G1/2
|
G1/2"
|
6-12
|
20.9
|
8
|
22
|
22
|
19 00 017 2040 06
|
50
|
|
TLYBFC-HSMS.G3/4
|
G3/4"
|
13-18
|
26.4
|
9
|
25
|
30
|
19 00 017 2060 06
|
50
|
|
TLYBFC-HSMS.G1
|
G1"
|
18-25
|
33.2
|
11
|
29
|
40
|
19 00 017 2080 06
|
20
|
|
TLYBFC-HSMS.G1-1/4
|
G1-1/4"
|
25-33
|
41.9
|
13
|
35
|
50
|
19 00 017 2100 06
|
10
|
|
TLYBFC-HSMS.G1-1/2
|
G1-1/2"
|
32-38
|
47.8
|
14
|
37
|
57
|
19 00 017 2120 06
|
10
|
|
TLYBFC-HSMS.G2
|
G2"
|
37-44
|
59.6
|
14
|
38
|
64
|
19 00 017 2140 06
|
5
|
|
TLYBFC-HSMS.G2-1/2
|
G2-1/2"
|
42-52
|
75.1
|
15
|
38
|
78
|
19 00 017 2160 06
|
5
|
|
TLYBFC-HSMS.G3
|
G3"
|
65-70
|
87.8
|
15
|
48
|
98
|
19 00 017 2180 06
|
5
|
型号
Model number
|
螺纹规格
Thread Dimension
|
接线范围
Clamping range（mm）
|
螺纹外径
AG（mm）
|
螺纹长度
GL
|
高度
H
|
扳手尺寸
Wrench Size（mm）
|
订货号
Article No.
|
包装单位
Packet Units
|
|
TLYBFC-HSMS.PG7.A
|
PG7
|
3-6.5
|
12.5
|
5
|
19
|
14
|
9 00 017 1070 06
|
100
|
|
TLYBFC-HSMS.PG7.B
|
PG7
|
2-5
|
12.5
|
5
|
19
|
14
|
9 00 017 1071 06
|
100
|
|
TLYBFC-HSMS.PG9.A
|
PG9
|
4-8
|
15.2
|
6
|
21
|
17
|
19 00 017 1090 06
|
100
|
|
TLYBFC-HSMS.PG9.B
|
PG9
|
2-6
|
15.2
|
6
|
21
|
17
|
19 00 017 1091 06
|
100
|
|
TLYBFC-HSMS.PG11.A
|
PG11
|
5-10
|
18.6
|
6
|
22
|
20
|
19 00 017 1110 06
|
50
|
|
TLYBFC-HSMS.PG11.B
|
PG11
|
3-7
|
18.6
|
6
|
22
|
20
|
19 00 017 1111 06
|
50
|
|
TLYBFC-HSMS.PG13.5.A
|
PG13.5
|
6-12
|
20.4
|
6.5
|
24
|
22
|
19 00 017 1130 06
|
50
|
|
TLYBFC-HSMS.PG13.5.B
|
PG13.5
|
5-9
|
20.4
|
6.5
|
24
|
22
|
19 00 017 1131 06
|
50
|
|
TLYBFC-HSMS.PG16.A
|
PG16
|
10-14
|
22.5
|
6.5
|
23
|
24
|
19 00 017 1160 06
|
50
|
|
TLYBFC-HSMS.PG16.B
|
PG16
|
7-12
|
22.5
|
6.5
|
23
|
24
|
19 00 017 1161 06
|
50
|
|
TLYBFC-HSMS.PG21.A
|
PG21
|
13-18
|
28.3
|
7
|
24
|
30
|
19 00 017 1210 06
|
20
|
|
TLYBFC-HSMS.PG21.B
|
PG21
|
9-16
|
28.3
|
7
|
24
|
30
|
19 00 017 1211 06
|
20
|
|
TLYBFC-HSMS.PG29.A
|
PG29
|
18-25
|
37
|
8
|
29
|
40
|
19 00 017 1290 06
|
20
|
|
TLYBFC-HSMS.PG29.B
|
PG29
|
13-20
|
37
|
8
|
29
|
40
|
19 00 017 1291 06
|
20
|
|
TLYBFC-HSMS.PG36.A
|
PG36
|
22-32
|
47
|
8
|
35
|
50
|
19 00 017 1360 06
|
10
|
|
TLYBFC-HSMS.PG36.B
|
PG36
|
20-26
|
47
|
8
|
35
|
50
|
19 00 017 1361 06
|
10
|
|
TLYBFC-HSMS.PG42.A
|
PG42
|
32-38
|
54
|
9
|
37
|
57
|
19 00 017 1420 06
|
10
|
|
TLYBFC-HSMS.PG42.B
|
PG42
|
25-31
|
54
|
9
|
37
|
57
|
19 00 017 1421 06
|
10
|
|
TLYBFC-HSMS.PG48.A
|
PG48
|
37-44
|
59.3
|
10
|
38
|
64
|
119 00 017 1480 06
|
5
|
|
TLYBFC-HSMS.PG48.B
|
PG48
|
29-35
|
59.3
|
10
|
38
|
64
|
19 00 017 1481 06
|
5
|
型号
Model number
|
螺纹规格
Thread Dimension
|
接线范围
Clamping range（mm）
|
螺纹外径
AG（mm）
|
螺纹长度
GL
|
高度
H
|
扳手尺寸
Wrench Size（mm）
|
订货号
Article No.
|
包装单位
Packet Units
|
|
TLYBFC-HSMS.M12.A
|
M12×1.5
|
3-6.5
|
12.0
|
6.5
|
19
|
14
|
19 00 017 0120 06
|
200
|
|
TLYBFC-HSMS.M12.B
|
M12×1.5
|
2-5
|
12.0
|
6.5
|
19
|
14
|
19 00 017 0121 06
|
2000
|
|
TLYBFC-HSMS.M16.A
|
M16×1.5
|
4-8
|
16.0
|
6
|
21
|
17/19
|
19 00 017 0160 06
|
100
|
|
TLYBFC-HSMS.M16.B
|
M16×1.5
|
2-6
|
16.0
|
6
|
21
|
17/19
|
19 00 017 0161 06
|
100
|
|
TLYBFC-HSMS.M16.C
|
M16×1.5
|
5-10
|
16.0
|
6
|
22
|
20
|
19 00 017 0162 06
|
100
|
|
TLYBFC-HSMS.M20.A
|
M20×1.5
|
6-12
|
20.0
|
6
|
23
|
22
|
19 00 017 0200 06
|
50
|
|
TLYBFC-HSMS.M20.B
|
M20×1.5
|
5-9
|
20.0
|
6
|
23
|
22
|
19 00 017 0201 06
|
50
|
|
TLYBFC-HSMS.M20.C
|
M20×1.5
|
10-14
|
20.0
|
6
|
24
|
24
|
19 00 017 0202 06
|
50
|
|
TLYBFC-HSMS.M25.A
|
M25×1.5
|
13-18
|
25.0
|
7
|
26
|
30
|
19 00 017 0250 06
|
20
|
|
TLYBFC-HSMS.M25.B
|
M25×1.5
|
9-16
|
25.0
|
7
|
26
|
30
|
19 00 017 0251 06
|
20
|
|
TLYBFC-HSMS.M32.A
|
M32×1.5
|
18-25
|
32.0
|
8
|
31
|
40
|
19 00 017 0320 06
|
20
|
|
TLYBFC-HSMS.M32.B
|
M32×1.5
|
13-20
|
32.0
|
8
|
31
|
40
|
19 00 017 0321 06
|
20
|
|
TLYBFC-HSMS.M32.C
|
M32×1.5
|
15-21
|
32.0
|
8
|
33
|
36
|
19 00 017 0322 06
|
20
|
|
TLYBFC-HSMS.M40.A
|
M40×1.5
|
22-32
|
40.0
|
8
|
37
|
50
|
19 00 017 0400 06
|
10
|
|
TLYBFC-HSMS.M40.B
|
M40×1.5
|
20-26
|
40.0
|
8
|
37
|
50
|
19 00 017 0401 06
|
10
|
|
TLYBFC-HSMS.M40.C
|
M40×1.5
|
19-27
|
40.0
|
8
|
33
|
46
|
19 00 017 0402 06
|
10
|
|
TLYBFC-HSMS.M50.A
|
M50×1.5
|
32-38
|
50.0
|
9
|
37
|
57
|
19 00 017 0500 06
|
10
|
|
TLYBFC-HSMS.M50.B
|
M50×1.5
|
25-31
|
50.0
|
9
|
37
|
57
|
19 00 017 0501 06
|
10
|
|
TLYBFC-HSMS.M63.A
|
M63×1.5
|
37-44
|
63.0
|
10
|
38
|
64/68
|
19 00 017 0630 06
|
5
|
|
TLYBFC-HSMS.M63.B
|
M63×1.5
|
29-35
|
63.0
|
10
|
38
|
64/68
|
19 00 017 0631 06
|
5
|
