螺牙规格:公制MG牙,德制PG牙,英制G管螺牙,美制NPT锥螺牙。
产品材质:A.C.F部分采用304不锈钢制成,E采用PA66工程塑料,B,D采用耐高温硅胶制成.

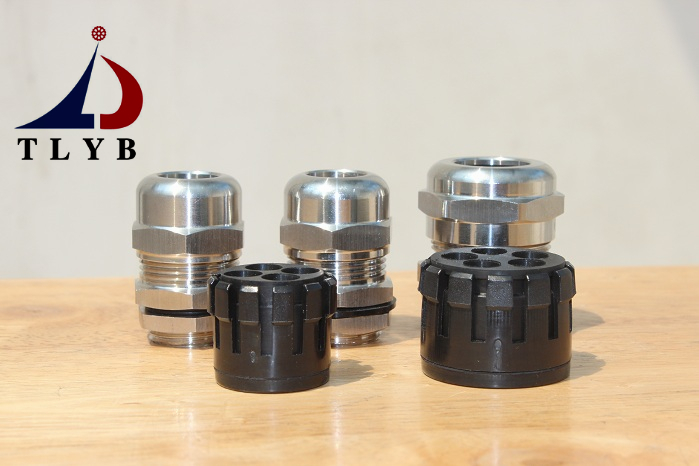

产品特性:本款多孔不锈钢防水接头为多出线孔型设计,功能可以将多条电缆线同时整合在一个出线孔上,不仅能大幅缩减施工时间,降低成本,亦可减少出线孔所占用的空间。 本款高端防爆不锈钢电缆固定头具有高安全性和稳定性,对抗恶劣环境具有耐腐蚀.
工作温度:-40°C至120°C,短时可达150°C.
本产品全数通过EX dII BT4防爆认证,接受定制316.316L.阻燃V0及其他钢件加工.
螺牙规格
|
产品型号
|
螺纹外径
|
穿线范围
|
螺纹长度
|
包装
|
C1 mm
|
O.D-C1 mm
|
C2 mm
|
PCS
|
M16
|
MG16-H6-02
|
16
|
2.1 ~ 1.4
|
8
|
50
|
M18
|
MG18-H6-02
|
18
|
2.1 ~ 1.4
|
9.5
|
M20
|
MG20-H5-03
|
20
|
3 ~ 1.5
|
9.5
|
M25
|
MG25-H5-06
|
25
|
6 ~ 3
|
12
|
20
|
MG25-H6-05
|
25
|
5 ~ 2
|
12
|
MG25-H7-04
|
25
|
5 ~ 3
|
12
|
M32
|
MG32-H5-08
|
32
|
8 ~ 5
|
13
|
10
|
MG32-H6-06
|
32
|
6 ~ 3
|
13
|
MG32-H6-07
|
32
|
7 ~ 4
|
13
|
PG11
|
PG11-H6-02
|
18.6
|
2.1 ~ 1.4
|
10
|
50
|
PG16
|
PG16-H5-03
|
22.4
|
3 ~ 1.5
|
10
|
PG21
|
PG21-H5-06
|
28.3
|
6 ~ 3
|
12
|
20
|
PG21-H6-05
|
28.3
|
5 ~ 2
|
12
|
PG21-H7-04
|
28.3
|
5 ~ 3
|
12
|
PG29
|
PG29-H5-08
|
37
|
8 ~ 5
|
13
|
10
|
PG29-H6-06
|
37
|
6 ~ 3
|
13
|
PG29-H6-07
|
37
|
7 ~ 4
|
13
|
G3/8"
|
G3/8-H6-02
|
16.6
|
2.1 ~ 1.4
|
10
|
50
|
G3/4"
|
G3/4-H5-06
|
26.4
|
6 ~ 3
|
12
|
20
|
G3/4-H6-05
|
26.4
|
5 ~ 2
|
12
|
G3/4-H7-04
|
26.4
|
5 ~ 3
|
12
|
G1"
|
G1-H5-08
|
33.2
|
8 ~ 5
|
13
|
10
|
G1-H6-06
|
33.2
|
6 ~ 3
|
13
|
G1-H6-07
|
33.2
|
7 ~ 4
|
13
|
NPT3/8"
|
NPT3/8-H6-02
|
16.6
|
2.1 ~ 1.4
|
10
|
50
|
NPT3/4"
|
NPT3/4-H5-06
|
26.4
|
6 ~ 3
|
12
|
20
|
NPT3/4-H6-05
|
26.4
|
5 ~ 2
|
12
|
NPT3/4-H7-04
|
26.4
|
5 ~ 3
|
12
|
NPT1"
|
NPT1-H5-08
|
33.2
|
8 ~ 5
|
13
|
10
|
NPT1-H6-06
|
33.2
|
6 ~ 3
|
13
|
NPT1-H6-07
|
33.2
|
7 ~ 4
|
13
|
