螺牙规格：公制MG牙，德制PG牙，英制G管螺牙，美制NPT锥螺牙。
产品材质：A.C.F部分采用304不锈钢制成，E采用PA66工程塑料，B,D采用耐高温硅胶制成.

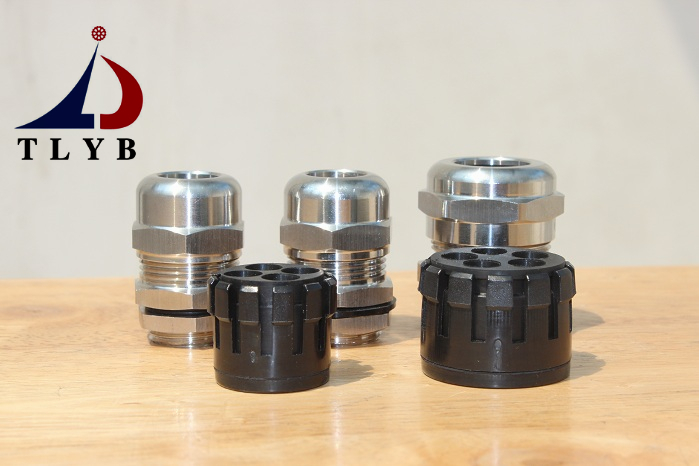

产品特性：本款多孔不锈钢防水接头为多出线孔型设计，这个功能可以将多条电缆线同时整合在一个出线孔上，不仅能大幅缩减施工时间，降低成本，亦可减少出线孔所占用的空间。 本款不锈钢电缆固定头具有高安全性和稳定性，对抗恶劣环境具有耐腐蚀.
工作温度：-40°C至120°C，短时可达150°C.
备注：接受定制316不锈钢等,欢迎来电咨询!
|
螺牙规格
|
产品型号
|
电缆外径
|
螺纹外径
|
螺纹长度
|
扳手径
|
包装数量
|
|
M16
|
CMA16-H5-02
|
2-2.8
|
16
|
9
|
22/22
|
10
|
|
M20
|
CMA20-H5-02
|
1.3-2
|
20
|
9.5
|
26/26
|
10
|
|
M20
|
CMA20-H5-03
|
2-3.1
|
20
|
9.5
|
26/26
|
10
|
|
M20
|
CMA20-H5-04
|
3-4.1
|
20
|
9.5
|
26/26
|
10
|
|
M25
|
CMA25-H5-03
|
2.6-3.6
|
25
|
12
|
32/32
|
10
|
|
M25
|
CMA25-H5-04
|
3.6-4.6
|
25
|
12
|
32/32
|
10
|
|
M25
|
CMA25-H5-06
|
4.6-6
|
25
|
12
|
32/32
|
10
|
|
M32
|
CMA32-H5-08
|
6-8
|
32
|
12.5
|
41/41
|
10
|
|
M40
|
CMA40-H5-08
|
6.6-8.3
|
40
|
15
|
50/50
|
5
|
|
G(PF)3/8
|
CGA17-H5-02
|
2-2.8
|
16.66
|
9
|
22/22
|
10
|
|
G(PF)1/2
|
CGA21-H5-02
|
1.3-2
|
20.95
|
9.5
|
26/26
|
10
|
|
G(PF)1/2
|
CGA21-H5-03
|
2-3.1
|
20.95
|
9.5
|
26/26
|
10
|
|
G(PF)1/2
|
CGA21-H5-04
|
3-4.1
|
20.95
|
9.5
|
26/26
|
10
|
|
G(PF)3/4
|
CGA26-H5-03
|
2.6-3.6
|
26.44
|
12
|
32/32
|
10
|
|
G(PF)3/4
|
CGA26-H5-04
|
3.6-4.6
|
26.44
|
12
|
32/32
|
10
|
|
G(PF)3/4
|
CGA26-H5-06
|
4.6-6
|
26.44
|
12
|
32/32
|
10
|
|
G(PF)1**
|
CGA33-H5-08
|
6--8
|
33.25
|
12.5
|
41/41
|
10
|
|
G(PF)1 1/4
|
CGA42-H5-08
|
6.5-8.3
|
41.91
|
15
|
50/50
|
5
|
|
PG11
|
CPA11-H5-03
|
2-2.8
|
18.6
|
9
|
22/22
|
10
|
|
PG16
|
CPA16-H5-04
|
1.3-2
|
22.5
|
9.5
|
26/26
|
10
|
|
PG16
|
CPA16-H5-03
|
2-3.1
|
22.5
|
9.5
|
26/26
|
10
|
|
PG16
|
CPA16-H5-04
|
3-4.1
|
22.5
|
9.5
|
26/26
|
10
|
|
PG21
|
CPA21-H5-03
|
2.6-3.6
|
28.3
|
12
|
32/32
|
10
|
|
PG21
|
CPA21-H5-04
|
3.6-4.6
|
28.3
|
12
|
32/32
|
10
|
|
PG21
|
CPA21-H5-06
|
4.6-6
|
28.3
|
12
|
32/32
|
10
|
|
PG29
|
CPA29-H5-08
|
6-8
|
37
|
12.5
|
41/41
|
10
|
|
PG36
|
CPA36-H5-08
|
6.5-8.3
|
47
|
15
|
50/50
|
5
|
|
NPT3/8
|
CNA17-H5-02
|
2-2.8
|
17.05
|
13
|
22
|
10
|
|
NPT1/2
|
CNA21-H5-02
|
1.3-2
|
21.22
|
13
|
26
|
10
|
|
NPT1/2
|
CNA21-H5-03
|
2.3.1
|
21.22
|
13
|
26
|
10
|
|
NPT1/2
|
CNA21-H5-04
|
3-4.1
|
21.22
|
13
|
26
|
10
|
|
NPT3/4
|
CNA26-H5-03
|
2.6-3.6
|
26.56
|
14
|
32
|
10
|
|
NPT3/4
|
CNA26-H5-04
|
3.6-4.6
|
26.56
|
14
|
32
|
10
|
|
NPT3/4
|
CNA26-H5-06
|
4.6-6
|
26.56
|
14
|
32
|
10
|
|
NPT1**
|
CNA33-H5-08
|
6-8
|
33.22
|
15
|
41
|
10
|
