螺牙规格 ：公制牙ＭG牙规，德制PG牙，美制NPT锥螺纹，英制G(PF)管螺纹

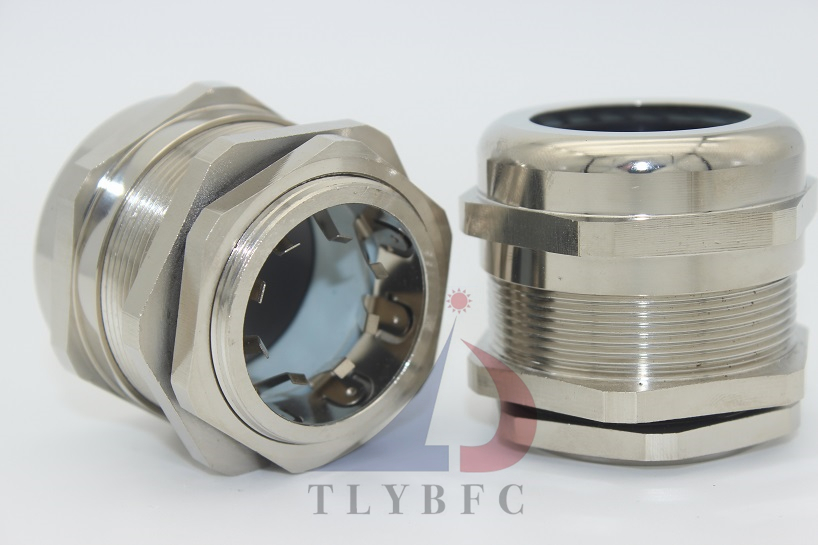

產品說明 ：黄铜材质精制而成，具有独特的防爆功能，另可在隔离线电缆时,降低电磁波干扰,特殊夹紧爪与夹紧圈之设计，夹紧电缆范围大，抗拉力特强，可防水、防尘、抗盐、耐弱酸、酒精、油、油脂及一般溶剂。
防护等级 ：在规定的卡口范围内，并使用密封圈旋紧迫紧头，达到IP68-5Bar
工作温度 ：-40℃~＋100℃短时可达＋120℃

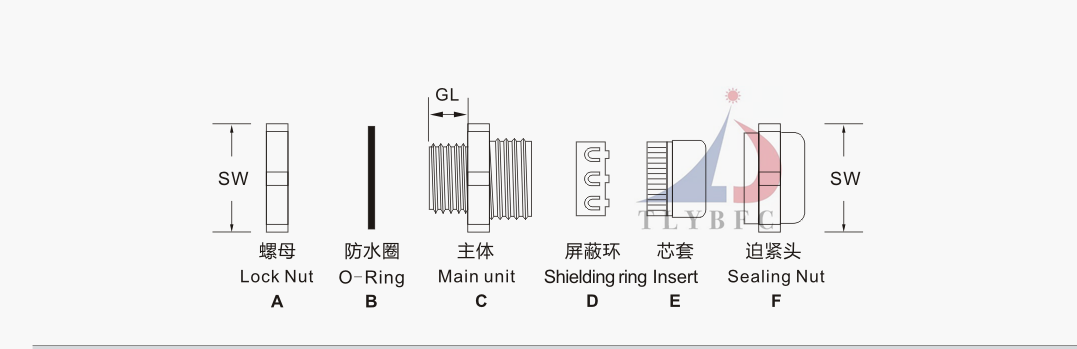

产品材质 ：A.C.F 部份以黄铜制成，E 部份以 UL 认可之尼龙PA66 制成 ( 防火等级 UL 94V-2 )，B 及 D 部份采用EPDM耐候橡胶制成。
安装方法 ：TLYBFC品牌电缆接头出线口一端可将进出电缆锁紧并起到防水防尘、防震动的作用，另一端可接入设备箱体上，也可以根据选用螺纹。接入进出口为内螺纹的电动设备上。
螺纹长度： 短螺纹适合用于薄型机板的开孔或附有内螺纹的设备上，长螺纹适合接合厚型机板。螺纹加长型可定制。
产品特性：本产品经特殊设计，将金属电缆固定头当作是一个端体，当隔离线电缆进入本固定头时，可利用固定头内所附加的铜制接触片来与电缆线内的金属隔离编制网作接触，进而引导干扰的电磁波到接地线上，使电磁波干扰源得以疏散。本款金属防磁波电缆接头全方位尺寸能充分地被应用到所有需防磁波的出线领域上，并且扎实的提供防水IP68与固定抗拉的效果。
产品颜色 ：金属色，我们的规格不止以下型号，可接受定制，欢迎来电咨询。
|
产品型号
|
螺纹规格
|
电缆范围
|
螺纹外径
|
螺纹长度
|
高度
|
扳手尺寸
|
包装数量
|
|
TLYBFZ-EMV.SC-M12
|
M12X1.5
|
3-6.5
|
12
|
6
|
19
|
14
|
100
|
|
TLYBFZ-EMV.SC1-M12
|
M12X1.5
|
4-8
|
12
|
6
|
22
|
20
|
100
|
|
TLYBFZ-EMV.SC-M16
|
M16X1.5
|
4-8
|
16
|
7
|
21
|
17/18
|
100
|
|
TLYBFZ-EMV.SC1-M16
|
M16X1.5
|
5-10
|
16
|
7
|
24
|
22
|
100
|
|
TLYBFZ-EMV.SC-M20
|
M20X1.5
|
6-12
|
20
|
7
|
23.5
|
22
|
100
|
|
TLYBFZ-EMV.SC1-M20
|
M20X1.5
|
9-14
|
20
|
7
|
27
|
26
|
100
|
|
TLYBFZ-EMV.SC-M25
|
M25X1.5
|
10-16
|
25
|
7
|
24.5
|
28
|
50
|
|
TLYBFZ-EMV.SC1-M25
|
M25X1.5
|
13-18
|
25
|
7
|
28.5
|
30
|
50
|
|
TLYBFZ-EMV.SC-M32
|
M32X1.5
|
15-21
|
32
|
8
|
28
|
36
|
25
|
|
TLYBFZ-EMV.SC1-M32
|
M32X1.5
|
18-25
|
32
|
8
|
33
|
38
|
25
|
|
TLYBFZ-EMV.SC-M36
|
M36X2.0
|
18-25
|
36
|
8
|
34
|
40
|
20
|
|
TLYBFZ-EMV.SC-M40
|
M40X1.5
|
21-30
|
40
|
9
|
38
|
45
|
20
|
|
TLYBFZ-EMV.SC1-M40
|
M40X1.5
|
22-32
|
40
|
9
|
34
|
50
|
20
|
|
TLYBFZ-EMV.SC-M48
|
M48X2.0
|
22-32
|
48
|
9
|
35
|
50
|
10
|
|
TLYBFZ-EMV.SC-M50
|
M50X1.5
|
30-38
|
50
|
9
|
40
|
55/58
|
10
|
|
TLYBFZ-EMV.SC1-M50
|
M50X1.5
|
30-40
|
50
|
9
|
37
|
58
|
10
|
|
TLYBFZ-EMV.SC-M63
|
M63X1.5
|
37-44
|
63
|
10
|
41.5
|
65/70
|
5
|
|
TLYBFZ-EMV.SC1-M3
|
M63X1.5
|
38-53
|
63
|
10
|
48
|
75
|
5
|
PG德制牙
|
产品型号
|
螺纹规格
|
电缆范围
|
螺纹外径
|
螺纹长度
|
高度
|
扳手尺寸
|
包装数量
|
|
TLYBFZ-EMV.SC-PG07
|
PG07
|
3-6.5
|
12.5
|
6
|
19
|
14
|
100
|
|
TLYBFZ-EMV.SC1-PG07
|
PG07
|
4-8
|
12.5
|
6
|
22
|
20
|
100
|
|
TLYBFZ-EMV.SC-PG09
|
PG09
|
4-8
|
15.2
|
10
|
21
|
17
|
100
|
|
TLYBFZ-EMV.SC1-PG09
|
PG09
|
5-10
|
15.2
|
10
|
24
|
22
|
100
|
|
TLYBFZ-EMV.SC-PG11
|
PG11
|
4-8
|
18.6
|
10
|
21
|
17/20
|
100
|
|
TLYBFZ-EMV.SC1-PG11
|
PG11
|
5-10
|
18.6
|
10
|
24
|
22
|
100
|
|
TLYBFZ-EMV.SC-PG13.5
|
PG13.5
|
7-12
|
20.4
|
10
|
23.5
|
22
|
100
|
|
TLYBFZ-EMV.SC1-PG13.5
|
PG13.5
|
9-14
|
20.4
|
10
|
27
|
26
|
100
|
|
TLYBFZ-EMV.SC-PG16
|
PG16
|
7-12
|
22.5
|
10
|
23.5
|
22/24
|
50
|
|
TLYBFZ-EMV.SC1-PG16
|
PG16
|
9-14
|
22.5
|
10
|
27
|
26
|
50
|
|
TLYBFZ-EMV.SC-PG21
|
PG21
|
11-16
|
28.3
|
10
|
24.5
|
28/30
|
25
|
|
TLYBFZ-EMV.SC1-PG21
|
PG21
|
13-18
|
28.3
|
10
|
28.5
|
30
|
25
|
|
TLYBFZ-EMV.SC-PG29
|
PG29
|
15-21
|
37
|
8
|
28
|
36/40
|
25
|
|
TLYBFZ-EMV.SC1-PG29
|
PG29
|
17-24
|
37
|
8
|
33
|
38/40
|
25
|
|
TLYBFZ-EMV.SC-PG36
|
PG36
|
21-30
|
47
|
9
|
38
|
45/50
|
20
|
|
TLYB-FZEMV.SC1-PG36
|
PG36
|
22-32
|
47
|
9
|
34
|
50
|
20
|
|
TLYBFZ-EMV.SC-PG42
|
PG42
|
30-38
|
54
|
9
|
40
|
58
|
10
|
|
TLYBFZ-EMV.SC1-PG42
|
PG42
|
30-40
|
54
|
9
|
37
|
58
|
10
|
|
TLYBFZ-EMV.SC-PG48
|
PG48
|
37-44
|
59.3
|
10
|
41.5
|
65
|
5
|
|
TLYBFZ-EMV.SC1-PG48
|
PG48
|
38-53
|
59.3
|
10
|
48
|
75
|
5
|
|
结构
|
螺牙规格
|
产品型号
|
适用电缆
|
螺纹外径
|
螺纹长度
|
扳手径
|
包装
|
|
mm
|
O.D-C1
|
C2
|
A/F
|
PCS
|
|
|
M6*1
|
TLYBFZ-EMC-M6A-03
|
2--3
|
6
|
5
|
9
|
100
|
|
|
M8*1
|
TLYBFZ-EMC-M8F-05
|
3--5
|
8
|
5.5
|
11
|
100
|
|
|
M10*1.5
|
TLYBFZ-EMC-M10A-06
|
3--6
|
10
|
5.5
|
12
|
100
|
|
|
M12*1.5
|
TLYBFZ-EMC-M12S-06
|
3--6
|
12
|
8
|
14/14
|
50
|
|
公
|
TLYBFZ-EMC-M12A-08
|
4--8
|
12
|
8
|
17/17
|
50
|
|
TLYBFZ-EMC-M12F-05
|
3--5
|
12
|
8
|
17/17
|
50
|
|
|
M16*1.5
|
TLYBFZ-EMC-M16H-08
|
4--8
|
16
|
9
|
18/18
|
50
|
|
|
TLYBFZ-EMC-M16A-10
|
6--10
|
16
|
9
|
22/22
|
50
|
|
|
TLYBFZ-EMC-M16D-06
|
4--7
|
16
|
9
|
22/22
|
50
|
|
制
|
M18*1.5
|
TLYBFZ-EMC-M18A-10
|
6--10
|
18
|
9
|
22/22
|
50
|
|
TLYBFZ-EMC-M18F-06
|
4--7
|
18
|
9
|
22/22
|
50
|
|
|
M20*1.5
|
TLYBFZ-EMC-M20A-12
|
6--12
|
20
|
10
|
24/24
|
50
|
|
|
TLYBFZ-EMC-M20F-08
|
4--8
|
20
|
10
|
24/24
|
50
|
|
|
TLYBFZ-EMC-M20D-14
|
7--14
|
20
|
10
|
26/26
|
50
|
|
MG
|
TLYBFZ-EMC-M20K-10
|
7--11
|
20
|
10
|
26/26
|
50
|
|
M22*1.5
|
TLYBFZ-EMC-M22A-14
|
7--14
|
22
|
10
|
26/26
|
50
|
|
TLYBFZ-EMC-M22F-10
|
7--11
|
22
|
10
|
26/26
|
50
|
|
M25*1.5
|
TLYBFZ-EMC-M25A-18
|
13--18
|
25
|
12
|
32/32
|
50
|
|
|
TLYBFZ-EMC-M25F-16
|
12--16
|
25
|
12
|
32/32
|
50
|
|
|
M32*1.5
|
TLYBFZ-EMC-M32A-25
|
18--25
|
32
|
13
|
41/41
|
20
|
|
|
TLYBFZ-EMC-M32D-22
|
16--22
|
32
|
13
|
41/41
|
20
|
|
牙
|
M40*1.5
|
TLYBFZ-EMC-M40A-30
|
24--30
|
40
|
15
|
50/50
|
10
|
|
TLYBFZ-EMC-M40H-25
|
21--25
|
40
|
15
|
50/50
|
10
|
|
|
M50*1.5
|
TLYBFZ-EMC-M50A-39
|
31--41
|
50
|
15
|
60/60
|
10
|
|
|
TLYBFZ-EMC-M50F-32
|
26--32
|
50
|
15
|
60/60
|
10
|
|
|
M63*1.5
|
TLYBFZ-EMC-M63A-49
|
44--51
|
63
|
15
|
73/73
|
10
|
|
|
TLYBFZ-EMC-M63F-46
|
40--46
|
63
|
15
|
73/73
|
10
|
|
结构
|
螺牙规格
|
产品型号
|
适用电缆
|
螺纹外径
|
螺纹长度
|
扳手径
|
包装
|
|
mm
|
O.D-C1
|
C2
|
A/F
|
PCS
|
|
|
PG 7
|
TLYBFZ-EMC-PG7A-05
|
3--5.3
|
12.5
|
8
|
17 / 17
|
20
|
|
德
|
TLYBFZEMC-PG7F-08
|
4.5--8
|
12.5
|
8
|
17 / 17
|
20
|
|
TLYBFZ-EMC-PG7D-06
|
3--6
|
12.5
|
8
|
14 / 14
|
20
|
|
|
PG 9
|
TLYBFZ-EMC-PG9A-05
|
3--5.3
|
15.2
|
8
|
18 / 17
|
20
|
|
|
TLYBFZ-EMC-PG9F-08
|
4.5--8
|
15.2
|
8
|
18 / 17
|
20
|
|
|
PG 11
|
TLYBFZ-EMC-PG11-06
|
4--7
|
18.6
|
9
|
22 / 22
|
10
|
|
制
|
TLYBFZ-EMC-PG11H-10
|
6--10
|
18.6
|
9
|
22 / 22
|
10
|
|
PG 13.5
|
TLYBFZ-EMC-PG13.5F-08
|
5--9
|
20.4
|
9.5
|
24 / 24
|
10
|
|
|
TLYBFZ-EMC-PG13.5A-12
|
7--12
|
20.4
|
9.5
|
24 / 24
|
10
|
|
|
PG 16
|
TLYBFZ-EMC-PG16-10
|
7--11
|
22.5
|
9.5
|
26 / 26
|
10
|
|
|
TLYBFZ-EMC-PG16H-14
|
9--12.5
|
22.5
|
9.5
|
26 / 26
|
10
|
|
PG
|
PG 21
|
TLYBFZ-EMC-PG21A-16
|
12--16
|
28.3
|
12
|
32 / 32
|
10
|
|
TLYBFZ-EMC-PG21F-18
|
14--18
|
28.3
|
12
|
32 / 32
|
10
|
|
|
PG 29
|
TLYBFZ-EMC-PG29A-22
|
16--22
|
37
|
12.5
|
41 / 41
|
10
|
|
|
TLYBFZ-EMC-PG29H-25
|
18--25
|
37
|
12.5
|
41 / 41
|
10
|
|
|
PG36
|
TLYBFZ-EMC-PG36A-26
|
20.0-26.0
|
47
|
14
|
57/52
|
10
|
|
牙
|
TLYBFZ-EMC-PG36D-30
|
24.0-31.0
|
47
|
14
|
57/52
|
10
|
|
PG42
|
TLYBFZ-EMC-PG42A-32
|
25.0-32.0
|
54
|
15
|
64/62
|
10
|
|
|
TLYBFZ-EMC-PG42H-39
|
31.0-39.0
|
54
|
15
|
64/62
|
10
|
|
|
PG48
|
ETLYBFZ-MC-PG48A-45
|
36.0-45.0
|
59.3
|
16
|
70/78
|
10
|
|
结构
|
螺牙规格
|
产品型号
|
适用电缆
|
螺纹外径
|
螺纹长度
|
扳手径
|
包装
|
|
mm
|
O.D-C1
|
C2
|
A/F
|
PCS
|
|
美
|
NPT1/4
|
TLYBFZ-EMC-NPT1/4A-05
|
5.3 ~ 3
|
13.15
|
8
|
17 / 17
|
10
|
|
TLYBFZ-EMC-NPT1/4A-08
|
7.8 ~ 4.5
|
13.15
|
8
|
17 / 17
|
10
|
|
|
NPT3/8
|
TLYBFZ-EMC-NPT3/8A-06
|
7~4
|
17.05
|
8
|
22
|
50
|
|
制
|
TLYBFZ-EMC-NPT3/8A-10
|
10~6
|
17.05
|
8
|
22
|
50
|
|
NPT1/2
|
TLYBFZ-EMC-NPT1/2A-08
|
8~5.5
|
21.22
|
10
|
26
|
50
|
|
|
TLYBFZ-EMC-NPT1/2A-12
|
12~8.5
|
21.22
|
10
|
26
|
50
|
|
NPT
|
TLYBFZ-EMC-NPT1/2A-14
|
14~7.0
|
21.22
|
10
|
28
|
50
|
|
NPT3/4
|
TLYBFZ-EMC-NPT3/4A-16
|
16~12
|
26.56
|
14
|
32
|
50
|
|
|
TLYBFZ-EMC-NPT3/4A-18
|
18~14
|
26.56
|
14
|
32
|
50
|
|
牙
|
NPT1
|
TLYBFZ-EMC-NPT1A-22
|
22~16
|
33.22
|
15
|
41
|
20
|
|
TLYBFZ-EMC-NPT1A-25
|
25~18
|
33.22
|
15
|
41
|
20
|
|
结构
|
螺牙规格
|
产品型号
|
适用电缆
|
螺纹外径
|
螺纹长度
|
扳手径
|
包装
|
|
mm
|
O.D-C1
|
C2
|
A/F
|
PCS
|
|
英
|
G(PF) 1/4
|
TLYBFZ-EMC-G1/4A-05
|
5.3 ~ 3
|
13.15
|
8
|
17 / 17
|
10
|
|
TLYBFZ-EMC-G1/4A-08
|
7.8 ~ 4.5
|
13.15
|
8
|
17 / 17
|
10
|
|
|
G(PF) 3/8
|
TLYBFZ-EMC-G3/8A-06
|
7 ~ 4
|
16.66
|
9
|
22 / 22
|
10
|
|
制
|
TLYBFZ-EMC-G3/8A-10
|
10 ~ 6
|
16.66
|
9
|
22 / 22
|
10
|
|
G(PF) 1/2
|
TLYBFZ-EMC-G1/2A-08
|
8 ~ 5.5
|
20.95
|
9.5
|
26 / 26
|
10
|
|
|
TLYBFZ-EMC-G1/2A-12
|
12 ~ 8.5
|
20.95
|
9.5
|
26 / 26
|
10
|
|
G
|
TLYBFZ-EMC-G1/2A-14
|
14 ~ 9.0
|
20.95
|
9.5
|
26 / 28
|
10
|
|
G(PF) 3/4
|
TLYBFZ-EMC-G3/4A-16
|
16 ~ 12
|
26.44
|
12
|
32 / 32
|
10
|
|
|
TLYBFZ-EMC-G3/4A-18
|
18 ~ 14
|
26.44
|
12
|
32 / 32
|
10
|
|
牙
|
G(PF) 1
|
TLYBFZ-EMC-G1A-22
|
22 ~ 16
|
33.24
|
12.5
|
41 / 41
|
10
|
|
TLYBFZ-EMC-G1A-25
|
25 ~ 18
|
33.24
|
12.5
|
41 / 41
|
10
|
