螺牙规格 ：公制MG牙，德制PG牙，英制G(PF)管制螺牙，美制NPT锥形螺牙。

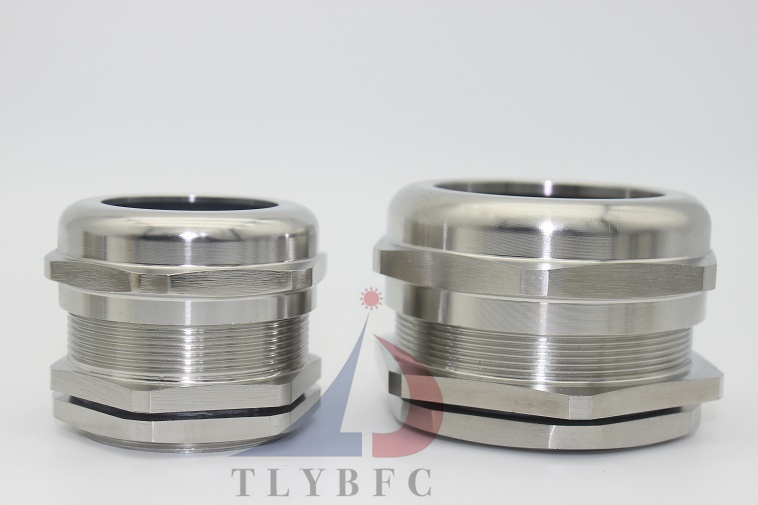

产品说明 ：采用304防爆不锈钢材质精制而成，具有独特的隔爆功能，另特殊夹紧爪与夹紧圈之设计，夹紧电缆范围大，抗拉力特强，可防水、防尘、抗盐、耐弱酸、酒精、油、油脂及一般溶剂。
防护等级 ：在规定的卡口范围内，并使用密封圈旋紧迫紧头，达到IP68-10Bar
工作温度 ：-40℃~＋120℃短时可达＋150℃
产品材質 ：A.C.F 部份以防爆不锈钢制成，E 部份以 UL 認可之尼龙 PA66 制成 ( 防火等級 UL 94V-2 )，B 及D部份采用硅胶制成。
安装方法：不锈钢防水接头出线口一端可将进出电缆锁紧并起到防水防尘、防震动的作用，另一端可接入设备箱体上，也可以根据选用螺纹。接入进出口为内螺纹的电动设备上。
产品颜色 ：不锈钢本色
备注：接受定制316不锈钢,耐高温,阻燃型等,欢迎来电咨询!
|
产品型号
|
螺纹规格
|
卡口范围
|
螺纹外径
|
螺纹长度
|
加长螺纹长度
|
扳手尺寸
|
|
TLYBFC-ZTB-EX-M6-SS
|
M6X1.0
|
2-3
|
6
|
6
|
10
|
10/10
|
|
TLYBFC-ZTB-EX-M8-SS
|
M8X1.0
|
2-3.5
|
8
|
6
|
10
|
12/12
|
|
TLYBFC-ZTB-EX-M10-SS
|
M10X1.0
|
3-6.5
|
10
|
6
|
10
|
14/14
|
|
TLYBFC-ZTB-EX-M12-SS
|
M12X1.5
|
3-6.5
|
12
|
6
|
10
|
14/14
|
|
TLYBFC-ZTB-EX-M12H-SS
|
M12X1.5
|
4-8
|
12
|
7
|
10
|
17/17
|
|
TLYBFC-ZTB-EX-M14-SS
|
M14X1.5
|
4-8
|
14
|
7
|
10
|
17/17
|
|
TLYBFC-ZTB-EX-M16--SS
|
M16X1.5
|
3-6.5
|
16
|
7
|
10
|
14/18
|
|
TLYBFC-ZTB-EX-M16H-SS
|
M16X1.5
|
4-8
|
16
|
7
|
10
|
17/18
|
|
TLYBFC-ZTB-EX-M16D-SS
|
M16X1.5
|
5-10
|
16
|
7
|
10
|
20/20
|
|
TLYBFC-ZTB-EX-M18-SS
|
M18X1.5
|
5-10
|
18
|
7
|
10
|
20/20
|
|
TLYBFC-ZTB-EX-M20-SS
|
M20X1.5
|
5-10
|
20
|
7
|
10
|
20/22
|
|
TLYBFC-ZTB-EX-M20H-SS
|
M20X1.5
|
6-12
|
20
|
7
|
10
|
22/22
|
|
TLYBFC-ZTB-EX-M20F-SS
|
M20X1.5
|
8-14
|
20
|
7
|
10
|
24/24
|
|
TLYBFC-ZTB-EX-M22-SS
|
M22X1.5
|
8-14
|
22
|
7
|
10
|
24/24
|
|
TLYBFC-ZTB-EX-M22H-SS
|
M22X1.5
|
10-16
|
22
|
7
|
10
|
28/28
|
|
TLYBFC-ZTB-EX-M24-SS
|
M24X1.5
|
6-12
|
24
|
7
|
12
|
24/27
|
|
TLYBFC-ZTB-EX-M24D-SS
|
M24X1.5
|
8-14
|
24
|
7
|
12
|
24/27
|
|
TLYBFC-ZTB-EX-M25-SS
|
M25X1.5
|
8-14
|
25
|
7
|
12
|
24/28
|
|
TLYBFC-ZTB-EX-M25E-SS
|
M25X1.5
|
10-16
|
25
|
7
|
12
|
28/28
|
|
TLYBFC-ZTB-EX-M25F-SS
|
M25X1.5
|
13-18
|
25
|
7
|
12
|
30/30
|
|
TLYBFC-ZTB-EX-M27-SS
|
M27X2.0
|
10-16
|
27
|
8
|
12
|
28/30
|
|
TLYBFC-ZTB-EX-M27H-SS
|
M27X2.0
|
13-18
|
27
|
8
|
12
|
30/30
|
|
TLYBFC-ZTB-EX-M30-SS
|
M30X2.0
|
10-16
|
30
|
8
|
12
|
28/34
|
|
TLYBFC-ZTB-EX-M30H-SS
|
M30X2.0
|
13-18
|
30
|
8
|
12
|
30/34
|
|
TLYBFC-ZTB-EX-M32-SS
|
M32X1.5
|
13-18
|
32M3
|
8
|
12
|
30/36
|
|
TLYBFC-ZTB-EX-M32H-SS
|
M32X1.5
|
15-22
|
32
|
8
|
12
|
36/36
|
|
TLYBFC-ZTB-EX-M32F-SS
|
M32X1.5
|
18-25
|
32
|
8
|
12
|
40/40
|
|
TLYBFC-ZTB-EX-M33-SS
|
M33X2.0
|
18-25
|
33
|
8
|
12
|
40/40
|
|
TLYBFC-ZTB-EX-M36-SS
|
M36XX2.0
|
15-22
|
36
|
8
|
12
|
36/40
|
|
TLYBFC-ZTB-EX-M36H-SS
|
M36X2.0
|
18-25
|
36
|
8
|
12
|
40/40
|
|
TLYBFC-ZTB-EX-M40-SS
|
M40X1.5
|
18-25
|
40
|
9
|
15
|
40/45
|
|
TLYBFC-ZTB-EX-M40H-SS
|
M40X1.5
|
22-30
|
40
|
9
|
15
|
45/45
|
|
TLYBFC-ZTB-EX-M40D-SS
|
M40X1.5
|
22-32
|
40
|
9
|
15
|
50/50
|
|
TLYBFC-ZTB-EX-M42-SS
|
M42X2.0
|
22-32
|
42
|
9
|
15
|
50/50
|
|
TLYBFC-ZTB-EX-M48-SS
|
M48X2.0
|
22-32
|
48
|
9
|
15
|
50/52
|
|
TLYBFC-ZTB-EX-M50-SS
|
M50X1.5
|
22-32
|
50
|
9
|
15
|
55/55
|
|
TLYBFC-ZTB-EX-M50H-SS
|
M50X1.5
|
30-38
|
50
|
9
|
15
|
55/58
|
|
TLYBFC-ZTB-EX-M56-SS
|
M56X2.0
|
30-38
|
56
|
9
|
15
|
58/60
|
|
TLYBFC-ZTB-EX-M60-SS
|
M60X2.0
|
37-44
|
60
|
10
|
15
|
65/65
|
|
TLYBFC-ZTB-EX-M63-SS
|
M63X1.5
|
37-44
|
63
|
10
|
15
|
65/70
|
|
TLYBFC-ZTB-EX-M63H-SS
|
M63X1.5
|
42-53
|
63
|
10
|
15
|
75/75
|
|
TLYBFC-ZTB-EX-M64-SS
|
M64X2.0
|
37-44
|
64
|
10
|
15
|
65/70
|
|
TLYBFC-ZTB-EX-M64H-SS
|
M64X2.0
|
42-53
|
64
|
10
|
15
|
75/75
|
|
TLYBFC-ZTB-EX-M72-SS
|
M72X2.0
|
37-44
|
72
|
12
|
15
|
80
|
|
TLYBFC-ZTB-EX-M72D-SS
|
M72X2.0
|
42-53
|
72
|
12
|
15
|
80
|
|
TLYBFC-ZTB-EX-M72H-SS
|
M72X2.0
|
55-61
|
72
|
12
|
15
|
86
|
|
TLYBFC-ZTB-EX-M75-SS
|
M75X2.0
|
37-44
|
75
|
12
|
15
|
86
|
|
TLYBFC-ZTB-EX-M76-SS
|
M76X2.0
|
55-61
|
76
|
12
|
15
|
86
|
|
TLYBFC-ZTB-EX-M80-SS
|
M80X2.0
|
42-53
|
80
|
12
|
15
|
86
|
|
TLYBFC-ZTB-EX-M80H-SS
|
M80X2.0
|
55-61
|
80
|
12
|
15
|
86
|
|
TLYBFC-ZTB-EX-M80F-SS
|
M80X2.0
|
65-71
|
80
|
12
|
15
|
86
|
|
TLYBFC-ZTB-EX-M88-SS
|
M88X2.0
|
65-71
|
88
|
12
|
15
|
96
|
|
TLYBFC-ZTB-EX-M100-SS
|
M100X2.0
|
74-80
|
100
|
15
|
15
|
112
|
|
TLYBFC-ZTB-EX-M114-SS
|
M114X2.0
|
86-93
|
114
|
15
|
15
|
126
|
|
TLYBFC-ZTB-EX-M125-SS
|
M125X2.0
|
95-102
|
125
|
15
|
15
|
138
|
|
产品型号
|
螺纹规格
|
卡口范围
|
螺纹外径
|
螺纹长度
|
扳手尺寸
|
包装单位
|
|
TLYBFC-ZTB-EX-G1/4-SS
|
G1/4
|
3-6.5
|
13.11
|
7
|
14
|
50
|
|
TLYBFC-ZTB-EX-G3/8-06-SS
|
G3/8
|
4-8
|
16.66
|
8
|
17/20
|
50
|
|
TLYBFC-ZTB-EX-G1 /2-SS
|
G1/2
|
5-10
|
20.99
|
8
|
20/24
|
50
|
|
TLYBFC-ZTB-EX-G1/2H-SS
|
G1/2
|
6-12
|
20.99
|
8
|
22/24
|
50
|
|
TLYBFC-ZTB-EX-G1/2F-SS
|
G1/2
|
8-14
|
20.99
|
8
|
24
|
50
|
|
TLYBFC-ZTB-EX-G3/4-SS
|
G3/4
|
6-12
|
26.44
|
8
|
22/30
|
50
|
|
TLYBFC-ZTB-EX-G3/4H-SS
|
G3/4
|
8-14
|
26.44
|
8
|
24/30
|
50
|
|
TLYBFC-ZTB-EX-G3/4K-SS
|
G3/4
|
13-18
|
26.44
|
8
|
30
|
50
|
|
TLYBFC-ZTB-EX-G1**-SS
|
G1**
|
18-25
|
33.24
|
9
|
38/40
|
25
|
|
TLYBFC-ZTB-EX-G1 1/4-SS
|
G1 1/4
|
22-32
|
41.91
|
10
|
48/50
|
10
|
|
TLYBFC-ZTB-EX-G1 1/2-SS
|
G1 1/2
|
30-38
|
47.8
|
10
|
55/58
|
10
|
|
TLYBFC-ZTB-EX-G2**-SS
|
G2**
|
37-44
|
59.61
|
11
|
70/65
|
5
|
|
TLYBFC-ZTB-EX-G2 1/2-SS
|
G2 1/2
|
55-61
|
75.18
|
24
|
86
|
4
|
|
TLYBFC-ZTB-EX-G3**-SS
|
G3
|
65-71
|
87.88
|
25
|
96
|
1
|
|
TLYBGC-ZTB-EX-G3 1/2-SS
|
G3 1/2
|
74-80
|
100.33
|
25
|
112
|
1
|
|
TLYBFC-ZTB-EX-G4**-SS
|
G4**
|
86-93
|
113.03
|
25
|
126
|
1
|
|
TLYBFC-ZTB-EX-G4 1/2-SS
|
G4 1/2
|
95-102
|
125.73
|
25
|
138
|
1
|
|
产品型号
|
螺纹规格
|
卡口范围
|
螺纹外径
|
螺纹长度
|
扳手尺寸
|
包装单位
|
|
TLYBFC-ZTB-EX-NPT3/8-SS
|
NPT3/8
|
4-8
|
17.055
|
11
|
17/20
|
50
|
|
TLYBFC-ZTB-EX-NPT1 /2-SS
|
NPT1/2
|
5-10
|
21.223
|
13
|
20/24
|
50
|
|
TLYBFC-ZTB-EX-NPT1/2H-SS
|
NPT1/2
|
6-12
|
21.223
|
13
|
22/24
|
50
|
|
TLYBFC-ZTB-EX-NPT1/2F-SS
|
NPT1/2
|
8-14
|
21.223
|
13
|
24
|
50
|
|
TLYBFC-ZTB-EX-NPT3/4-SS
|
NPT3/4
|
6-12
|
26.568
|
13
|
24/30
|
50
|
|
TLYBFC-ZTB-EX-NPT3/4H-SS
|
NPT3/4
|
8-14
|
26.568
|
13
|
24/30
|
50
|
|
TLYBFC-ZTB-EX-NPT3/4F-SS
|
NPT3/4
|
13-18
|
26.568
|
13
|
30
|
50
|
|
TLYBFC-ZTB-EX-NPT1**-SS
|
NPT1**
|
18-25
|
33.227
|
16
|
40
|
25
|
|
TLYBFC-ZTB-EX-NPT1 1/4-SS
|
NPT1 1/4
|
22-32
|
41.9184
|
16
|
50
|
10
|
|
TLYBFC-ZTB-EX-NPT1 1/2-SS
|
NPT1 1/2
|
30-38
|
48.053
|
18
|
55/58
|
10
|
|
TLYBFC-ZTB-EX-NPT2**-SS
|
NPT2**
|
37-44
|
60.091
|
18
|
65
|
5
|
|
TLYBFC-ZTB-EX-NPT3**-SS
|
NPT3
|
55-61
|
88.608
|
18
|
94
|
1
|
|
产品型号
|
螺纹规格
|
卡口范围
|
螺纹外径
|
螺纹长度
|
加长螺纹长度
|
扳手尺寸
|
|
TLYBFC-ZTB-EX-PG07-SS
|
PG07
|
3-6.5
|
12.5
|
6
|
10
|
14
|
|
TLYBFC-ZTB-EX-PG09-SS
|
PG9
|
3-6.5
|
15.2
|
7
|
10
|
14/17
|
|
TLYBFC-ZTB-EX-PG09H-SS
|
PG9
|
4-8
|
15.2
|
7
|
10
|
17
|
|
TLYBFC-ZTB-EX-PG11-SS
|
PG11
|
5-10
|
18.6
|
7
|
10
|
20
|
|
TLYBFC-ZTB-EX-PG13.5-SS
|
PG13.5
|
5-10
|
20.4
|
7
|
10
|
20/22
|
|
TLYBFC-ZTB-EX-PG13.5H-SS
|
PG13.5
|
6-12
|
20.4
|
7
|
10
|
22
|
|
TLYBFC-ZTB-EX-PG16-SS
|
PG16
|
6-12
|
22.5
|
7
|
10
|
22/24
|
|
TLYBFC-ZTB-EX-PG16H-SS
|
PG16
|
8-14
|
22.5
|
7
|
10
|
24
|
|
TLYBFC-ZTB-EX-PG21-SS
|
PG21
|
10-16
|
28.3
|
7
|
12
|
28/30
|
|
TLYBFC-ZTB-EX-PG21H-SS
|
PG21
|
13-18
|
28.3
|
7
|
12
|
30
|
|
TLYBFC-ZTB-EX-PG29-SS
|
PG29
|
15-22
|
37
|
8
|
12
|
36/40
|
|
TLYBFC-ZTB-EX-PG29H-SS
|
PG29
|
18-25
|
37
|
8
|
12
|
40
|
|
TLYBFC-ZTB-EX-PG36-SS
|
PG36
|
22-36
|
47
|
9
|
15
|
50
|
|
TLYBFC-ZTB-EX-PG42-SS
|
PG42
|
30-38
|
54
|
10
|
15
|
58
|
|
TLYBFC-ZTB-EX-PG48-SS
|
PG48
|
37-44
|
59.3
|
10
|
15
|
65
|
|
TLYBFC-ZTB-EX-PG63-SS
|
PG63
|
42-53
|
72
|
10
|
15
|
77
|
