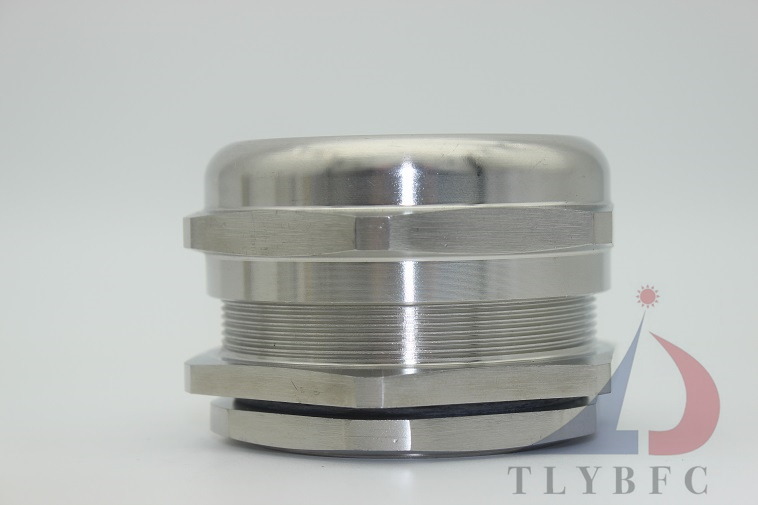

产品特性：本款隔爆不锈钢电缆防水接头具有高安全性和稳定性，对抗恶劣环境具有超强的耐腐蚀性，夹紧电缆范围大、抗拉力强、可防水、防尘、抗盐、耐酸碱、、油脂及一般溶剂。广泛应用于石油化工，机电设备，轨道交通等行业。
工作温度：-40°C至120°C，短时可达150°C.
防护等级：在规定的卡口范围内，使用密封圈，防护等级可达到IP68.
螺纹长度： 短螺纹适合用于薄型机板的开孔或附有内螺纹的设备上，长螺纹适合接合厚型机板。螺纹加长型可定制。
安装方法：不锈钢防水接头出线口一端可将进出电缆锁紧并起到防水防尘、防震动的作用，另一端可接入设备箱体上，也可以根据选用螺纹。接入进出口为内螺纹的电动设备上。
产品颜色 ：不锈钢本色
供货周期：常规90%产品现货，特殊定制或大量请来电咨询。
|
产品型号
|
螺纹规格
|
卡口范围
|
螺纹外径
|
螺纹长度
|
加长螺纹长度
|
扳手尺寸
|
|
TLYBFC-FC-M6-SS
|
M6X1.0
|
2-3
|
6
|
6
|
10
|
10/10
|
|
TLYBFC-FC-M8-SS
|
M8X1.0
|
2-3.5
|
8
|
6
|
10
|
12/12
|
|
TLYBFC-FC-M10-SS
|
M10X1.0
|
3-6.5
|
10
|
6
|
10
|
14/14
|
|
TLYBFC-FC-M12-SS
|
M12X1.5
|
3-6.5
|
12
|
6
|
10
|
14/14
|
|
TLYBFC-FC-M12H-SS
|
M12X1.5
|
4-8
|
12
|
7
|
10
|
17/17
|
|
TLYBFC-FC-M14-SS
|
M14X1.5
|
4-8
|
14
|
7
|
10
|
17/17
|
|
TLYBFC-FC-M16--SS
|
M16X1.5
|
3-6.5
|
16
|
7
|
10
|
14/18
|
|
TLYBFC-FC-M16H-SS
|
M16X1.5
|
4-8
|
16
|
7
|
10
|
17/18
|
|
TLYBFC-FC-M16D-SS
|
M16X1.5
|
5-10
|
16
|
7
|
10
|
20/20
|
|
TLYBFC-FC-M18-SS
|
M18X1.5
|
5-10
|
18
|
7
|
10
|
20/20
|
|
TLYBFC-FC-M20-SS
|
M20X1.5
|
5-10
|
20
|
7
|
10
|
20/22
|
|
TLYBFC-FC-M20H-SS
|
M20X1.5
|
6-12
|
20
|
7
|
10
|
22/22
|
|
TLYBFC-FC-M20F-SS
|
M20X1.5
|
8-14
|
20
|
7
|
10
|
24/24
|
|
TLYBFC-FC-M22-SS
|
M22X1.5
|
8-14
|
22
|
7
|
10
|
24/24
|
|
TLYBFC-FC-M22H-SS
|
M22X1.5
|
10-16
|
22
|
7
|
11
|
28/28
|
|
TLYBFC-FC-M24-SS
|
M24X1.5
|
6-12
|
24
|
7
|
12
|
24/27
|
|
TLYBFC-FC-M24D-SS
|
M24X1.5
|
8-14
|
24
|
7
|
12
|
24/27
|
|
TLYBFC-FC-M25-SS
|
M25X1.5
|
8-14
|
25
|
7
|
12
|
24/28
|
|
TLYBFC-FC-M25E-SS
|
M25X1.5
|
10-16
|
25
|
7
|
12
|
28/28
|
|
TLYBFC-FC-M25F-SS
|
M25X1.5
|
13-18
|
25
|
7
|
12
|
30/30
|
|
TLYBFC-FC-M27-SS
|
M27X2.0
|
10-16
|
27
|
8
|
12
|
28/30
|
|
TLYBFC-FC-M27H-SS
|
M27X2.0
|
13-18
|
27
|
8
|
12
|
30/30
|
|
TLYBFC-FC-M30-SS
|
M30X2.0
|
10-16
|
30
|
8
|
12
|
28/34
|
|
TLYBFC-FC-M30H-SS
|
M30X2.0
|
13-18
|
30
|
8
|
12
|
30/34
|
|
TLYBFC-FC-M32-SS
|
M32X1.5
|
13-18
|
32M3
|
8
|
12
|
30/36
|
|
TLYBFC-FC-M32H-SS
|
M32X1.5
|
15-22
|
32
|
8
|
12
|
36/36
|
|
TLYBFC-FC-M32F-SS
|
M32X1.5
|
18-25
|
32
|
8
|
12
|
40/40
|
|
TLYBFC-FC-M33-SS
|
M33X2.0
|
18-25
|
33
|
8
|
12
|
40/40
|
|
TLYBFC-FC-M36-SS
|
M36XX2.0
|
15-22
|
36
|
8
|
12
|
36/40
|
|
TLYBFC-FC-M36H-SS
|
M36X2.0
|
18-25
|
36
|
8
|
12
|
40/40
|
|
TLYBFC-FC-M40-SS
|
M40X1.5
|
18-25
|
40
|
9
|
15
|
40/45
|
|
TLYBFC-FC-M40H-SS
|
M40X1.5
|
22-30
|
40
|
9
|
15
|
45/45
|
|
TLYBFC-FC-M40D-SS
|
M40X1.5
|
22-32
|
40
|
9
|
15
|
50/50
|
|
TLYBFC-FC-M42-SS
|
M42X2.0
|
22-32
|
42
|
9
|
15
|
50/50
|
|
TLYBFC-FC-M48-SS
|
M48X2.0
|
22-32
|
48
|
9
|
15
|
50/52
|
|
TLYBFC-FC-M50-SS
|
M50X1.5
|
22-32
|
50
|
9
|
15
|
55/55
|
|
TLYBFC-FC-M50H-SS
|
M50X1.5
|
30-38
|
50
|
10
|
15
|
55/58
|
|
TLYBFC-FC-M56-SS
|
M56X2.0
|
30-38
|
56
|
10
|
15
|
58/60
|
|
TLYBFC-FC-M60-SS
|
M60X2.0
|
37-44
|
60
|
10
|
15
|
65/65
|
|
TLYBFC-FC-M63-SS
|
M63X1.5
|
37-44
|
63
|
10
|
15
|
65/70
|
|
TLYBFC-FC-M63H-SS
|
M63X1.5
|
42-53
|
63
|
10
|
15
|
75/75
|
|
TLYBFC-FC-M64-SS
|
M64X2.0
|
37-44
|
64
|
10
|
15
|
65/70
|
|
TLYBFC-FC-M64H-SS
|
M64X2.0
|
42-53
|
64
|
10
|
15
|
75/75
|
|
TLYBFC-FC-M72-SS
|
M72X2.0
|
37-44
|
72
|
12
|
23
|
80
|
|
TLYBFC-FC-M72D-SS
|
M72X2.0
|
42-53
|
72
|
12
|
23
|
80
|
|
TLYBFC-FC-M72H-SS
|
M72X2.0
|
55-61
|
72
|
12
|
23
|
86
|
|
TLYBFC-FC-M75-SS
|
M75X2.0
|
37-44
|
75
|
12
|
24
|
86
|
|
TLYBFC-FC-M76-SS
|
M76X2.0
|
55-61
|
76
|
12
|
24
|
86
|
|
TLYBFC-FC-M80-SS
|
M80X2.0
|
42-53
|
80
|
12
|
24
|
86
|
|
TLYBFC-FC-M80H-SS
|
M80X2.0
|
55-61
|
80
|
12
|
24
|
86
|
|
TLYBFC-FC-M80F-SS
|
M80X2.0
|
65-71
|
80
|
12
|
24
|
86
|
|
TLYBFC-FC-M88-SS
|
M88X2.0
|
65-71
|
88
|
12
|
25
|
96
|
|
TLYBFC-FC-M100-SS
|
M100X2.0
|
74-80
|
100
|
12
|
25
|
112
|
|
TLYBFC-FC-M114-SS
|
M114X2.0
|
86-93
|
114
|
12
|
25
|
126
|
|
TLYBFC-FC-M125-SS
|
M125X2.0
|
95-102
|
125
|
12
|
25
|
138
|
|
产品型号
|
螺纹规格
|
卡口范围
|
螺纹外径
|
螺纹长度
|
扳手尺寸
|
包装单位
|
|
TLYBFC-FC-G1/4-SS
|
G1/4
|
3-6.5
|
13.11
|
7
|
14
|
50
|
|
TLYBFC-FC-G3/8-06-SS
|
G3/8
|
4-8
|
16.66
|
8
|
17/20
|
50
|
|
TLYBFC-FC-G1 /2-SS
|
G1/2
|
5-10
|
20.99
|
8
|
20/24
|
50
|
|
TLYBFC-FC-G1/2H-SS
|
G1/2
|
6-12
|
20.99
|
8
|
22/24
|
50
|
|
TLYBFC-FC-G1/2F-SS
|
G1/2
|
8-14
|
20.99
|
8
|
24
|
50
|
|
TLYBFC-FC-G3/4-SS
|
G3/4
|
6-12
|
26.44
|
8
|
22/30
|
50
|
|
TLYBFC-FC-G3/4H-SS
|
G3/4
|
8-14
|
26.44
|
8
|
24/30
|
50
|
|
TLYBFC-FC-G3/4K-SS
|
G3/4
|
13-18
|
26.44
|
8
|
30
|
50
|
|
TLYBFC-FC-G1**-SS
|
G1**
|
18-25
|
33.24
|
9
|
38/40
|
25
|
|
TLYBFC-FC-G1 1/4-SS
|
G1 1/4
|
22-32
|
41.91
|
10
|
48/50
|
10
|
|
TLYBFC-FC-G1 1/2-SS
|
G1 1/2
|
30-38
|
47.8
|
10
|
55/58
|
10
|
|
TLYBFC-FC-G2**-SS
|
G2**
|
37-44
|
59.61
|
11
|
70/65
|
5
|
|
TLYBFC-FC-G2 1/2-SS
|
G2 1/2
|
55-61
|
75.18
|
24
|
86
|
4
|
|
TLYBFC-FC-G3**-SS
|
G3
|
65-71
|
87.88
|
25
|
96
|
1
|
|
TLYBGC-FC-G3 1/2-SS
|
G3 1/2
|
74-80
|
100.33
|
25
|
112
|
1
|
|
TLYBFC-FC-G4**-SS
|
G4**
|
86-93
|
113.03
|
25
|
126
|
1
|
|
TLYBFC-FC-G4 1/2-SS
|
G4 1/2
|
95-102
|
125.73
|
25
|
138
|
1
|
|
产品型号
|
螺纹规格
|
卡口范围
|
螺纹外径
|
螺纹长度
|
扳手尺寸
|
包装单位
|
|
TLYBFC-FC-NPT3/8-SS
|
NPT3/8
|
4-8
|
17.055
|
11
|
17/20
|
50
|
|
TLYBFC-FC-NPT1 /2-SS
|
NPT1/2
|
5-10
|
21.223
|
13
|
20/24
|
50
|
|
TLYBFC-FC-NPT1/2H-SS
|
NPT1/2
|
6-12
|
21.223
|
13
|
22/24
|
50
|
|
TLYBFC-FC-NPT1/2F-SS
|
NPT1/2
|
8-14
|
21.223
|
13
|
24
|
50
|
|
TLYBFC-FC-NPT3/4-SS
|
NPT3/4
|
6-12
|
26.568
|
13
|
24/30
|
50
|
|
TLYBFC-FC-NPT3/4H-SS
|
NPT3/4
|
8-14
|
26.568
|
13
|
24/30
|
50
|
|
TLYBFC-FC-NPT3/4F-SS
|
NPT3/4
|
13-18
|
26.568
|
13
|
30
|
50
|
|
TLYBFC-FC-NPT1**-SS
|
NPT1**
|
18-25
|
33.227
|
16
|
40
|
25
|
|
TLYBFC-FC-NPT1 1/4-SS
|
NPT1 1/4
|
22-32
|
41.9184
|
16
|
50
|
10
|
|
TLYBFC-FC-NPT1 1/2-SS
|
NPT1 1/2
|
30-38
|
48.053
|
18
|
55/58
|
10
|
|
TLYBFC-FC-NPT2**-SS
|
NPT2**
|
37-44
|
60.091
|
18
|
65
|
5
|
|
TLYBFC-FC-NPT3**-SS
|
NPT3
|
55-61
|
88.608
|
18
|
94
|
1
|
|
产品型号
|
螺纹规格
|
卡口范围
|
螺纹外径
|
螺纹长度
|
加长螺纹长度
|
扳手尺寸
|
|
TLYBFC-FC-PG07-SS
|
PG07
|
3-6.5
|
12.5
|
6
|
10
|
14
|
|
TLYBFC-FC-PG09-SS
|
PG9
|
3-6.5
|
15.2
|
7
|
10
|
14/17
|
|
TLYBFC-FC-PG09H-SS
|
PG9
|
4-8
|
15.2
|
7
|
10
|
17
|
|
TLYBFC-FC-PG11-SS
|
PG11
|
5-10
|
18.6
|
7
|
10
|
20
|
|
TLYBFC-FC-PG13.5-SS
|
PG13.5
|
5-10
|
20.4
|
7
|
10
|
20/22
|
|
TLYBFC-FC-PG13.5H-SS
|
PG13.5
|
6-12
|
20.4
|
7
|
10
|
22
|
|
TLYBFC-FC-PG16-SS
|
PG16
|
6-12
|
22.5
|
7
|
10
|
22/24
|
|
TLYBFC-FC-PG16H-SS
|
PG16
|
8-14
|
22.5
|
7
|
10
|
24
|
|
TLYBFC-FC-PG21-SS
|
PG21
|
10-16
|
28.3
|
7
|
12
|
28/30
|
|
TLYBFC-FC-PG21H-SS
|
PG21
|
13-18
|
28.3
|
7
|
12
|
30
|
|
TLYBFC-FC-PG29-SS
|
PG29
|
15-22
|
37
|
8
|
12
|
36/40
|
|
TLYBFC-FC-PG29H-SS
|
PG29
|
18-25
|
37
|
8
|
12
|
40
|
|
TLYBFC-FC-PG36-SS
|
PG36
|
22-36
|
47
|
9
|
15
|
50
|
|
TLYBFC-FC-PG42-SS
|
PG42
|
30-38
|
54
|
10
|
15
|
58
|
|
TLYBFC-FC-PG48-SS
|
PG48
|
37-44
|
59.3
|
10
|
15
|
65
|
|
TLYBFC-FC-PG63-SS
|
PG63
|
42-54
|
72
|
10
|
15
|
77
|
